Product Summary
The SMP1320-007LF is a plastic packaged, surface mountable PIN diode. The SMP1320-007LF is designed for high volume switch
applications from 10MHz to beyond 2 GHz. The low current performance of these diodes (0.9 Ω maximum at 10mA and 2Ω typical at 1 mA) make the SMP1320-007LF particularly suited to battery operated circuits. Available in a selection of plastic packages and in a variety of configurations including a low inductance (0.4 nH) SOT-23 (SMP1320-007), the small footprint SC-79 and the Cminiature SC-70.
Parametrics
SMP1320-007LF absolute maximum ratings: (1)Reverse Voltage (VR): 50V; (2)Power Dissipation @ 25℃ Lead Temperature (PD): 250mW; (3)Storage Temperature (TST): -65 to +150℃; (4)Operating Temperature (TOP): -65 to +150℃; (5)ESD Human Body Model: Class 1B.
Features
SMP1320-007LF features: (1)Designed for High Performance Wireless Switch Applications; (2)0.9 Ω Resistance, 0.3pF Capacitance; (3)Multiple Package Configurations; (4)Available in Tape and Reel Packaging.

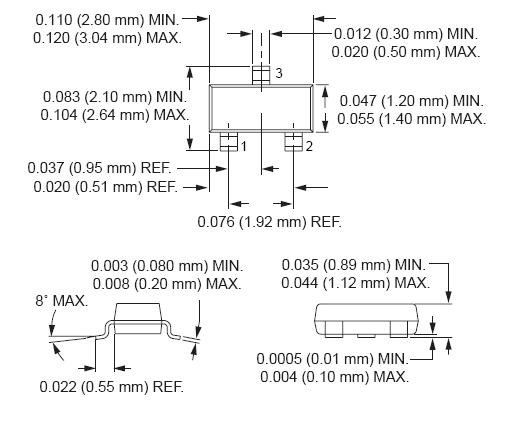

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SMP1320-007LF |
|
DIODE PIN 50V 250MW SOT-23 |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
SMP100LC-230 |
STMicroelectronics |
TVS Diodes - Transient Voltage Suppressors 230V 50uA Bidirect |
Data Sheet |
|
|
||||||||||||
|
SMP1302-074LF |
Skyworks Solutions, Inc. |
PIN Diodes Ls=1.4nH SC-70 Common Cathode |
Data Sheet |
|
|
||||||||||||
|
SMP1302-040LF |
Skyworks Solutions, Inc. |
PIN Diodes |
Data Sheet |
|
|
||||||||||||
|
SMP12A-E3/84A |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 400 Watt 12 Volt Uni |
Data Sheet |
Negotiable |
|
||||||||||||
|
SMP1304-007LF |
Analogic Tech |
Active Attenuator Ls=1.4nH SOT-23 |
Data Sheet |
|
|
||||||||||||
 |
SMP11A-M3/85A |
Vishay |
ESD Suppressors 400watt 11volt 5% Unidir |
Data Sheet |
|
|
||||||||||||
