Product Summary

The SGA-5389Z is a high performance SiGe HBT MMIC Amplifier. A Darlington configuration featuring one-micron emitters provides high FT and excellent thermal performance. The heterojunction increases breakdown voltage and minimizes leakage current between junctions. Cancellation of emitter junction non-linearities results in higher suppression of intermodulation products. Only two DC-blocking capacitors, a bias resistor, and an optional RF choke are required for operation. The applications of the SGA-5389Z include PA Driver Amplifier, Cellular, PCS, GSM, UMTS, IF Amplifier, Wireless Data, Satellite.

Parametrics

SGA-5389Z absolute maximum ratings: (1)Max Device Current (ID): 120mA; (2)Max Device Voltage (VD): 5V; (3)Max RF Input Power: +16dBm; (4)Max Junction Temp (TJ): +150℃; (5)Operating Temp Range (TL): -40 to +85℃; (6)Max Storage Temp: +150℃.

Features

SGA-5389Z features: (1)High Gain: 15.4dB at 1950MHz; (2)Cascadable 50Ω; (3)Operates from Single Supply; (4)Low Thermal Resistance package.

Diagrams

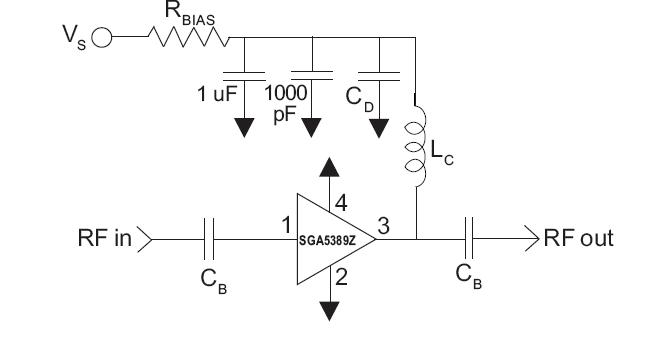

SGA-5389Z block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SGA-5389Z
SGA-5389Z

IC AMP HBT SIGE 4500MHZ SOT-89
Data Sheet
0-1: $1.85
1-10: $1.68
10-25: $1.50
25-100: $1.35
100-250: $1.20
250-500: $1.05
500-1000: $0.87
