Product Summary
The SGA-1263Z is a Silicon Germanium HBT Heterostructure Bipolar Transistor (SiGe HBT) amplifier that offers excellent isolation and flat gain response for application to 4GHz. This RFIC is a 2-stage design that provides high isolation of up to 40dB at 2GHz and is fabricated using the latest SiGe HBT 50GHz FT process, featuring one-micron emitters with VCEO>7V. The SGA-1263Z has less than 1dB gain drift over 125℃ operating range (-40℃ to +85℃) and are ideal for use as buffer amplifiers in oscillator applications covering cellular, ISM, and narrowband PCS bands. The applications of the SGA-1263Z include Buffer Amplifier for Oscillator Applications, Broadband Gain Blocks, IF Amp.
Parametrics
SGA-1263Z absolute maximum ratings: (1)Max Device Current (ID): 20mA; (2)Max Device Voltage (VD): 5V; (3)Max RF Input Power: -12dBm; (4)Max Junction Temperature (TJ): +150℃; (5)Operating Temperature Range (TL): -40 to +85℃; (6)Max Storage Temperature: +150℃.
Features
SGA-1263Z features: (1)DCto4000MHz Operation; (2)Single Supply Voltage; (3)Excellent Isolation, >50dB at 900MHz; (4)50Ω In/Out, Broadband Match for Operation from DC-4GHz; (5)Unconditionally Stable.

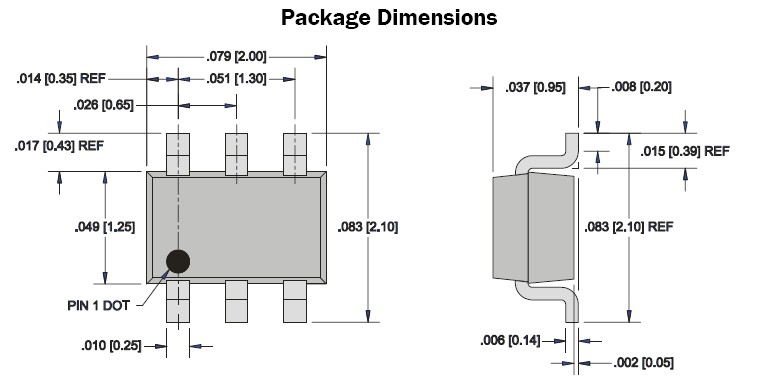

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() SGA-1263Z |
![]() |
![]() IC AMP HBT SIGE 4000MHZ SOT-363 |
![]() Data Sheet |
![]()
|
|
||||||||||||||||||
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||||||
![]() |
![]() SGA-0163 |
![]() |
![]() IC AMP HBT SIGE 4500MHZ SOT-363 |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||||||||
![]() |
![]() SGA-0163(Z) |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||||||||
![]() |
![]() SGA-0163Z |
![]() |
![]() IC AMP HBT SIGE 4500MHZ SOT-363 |
![]() Data Sheet |
![]()
|
|
||||||||||||||||||
![]() |
![]() SGA-0363 |
![]() |
![]() IC AMP HBT SIGE 5000MHZ SOT-363 |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||||||||
![]() |
![]() SGA-0363(Z) |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||||||||
![]() |
![]() SGA-0363Z |
![]() |
![]() IC AMP HBT SIGE 5000MHZ SOT-363 |
![]() Data Sheet |
![]()
|
|
