Product Summary
The PD22-73LF is a 50 Ω, in-phase combiner/splitter tuned for the 2.1–2.3 GHz band. The monolithic circuitry is 100% passive and offers low loss, high isolation and exceptional phase/amplitude balance. It is available in the SOT-6 surface mount package.
Parametrics
PD22-73LF absolute maximum ratings: (1)Frequency: 2.1 2.3 GHz; (2)Insertion loss less 3 dB split: 0.55 0.7 dB; (3)Isolation: 15 18 dB; (4)Input VSWR: 1.5:1 2.0:1; (5)Output VSWR: 1.1:1 1.3:1; (6)Amplitude balance: ±0.1 ±0.2 dB; (7)Phase balance: ±1 ±3 Deg.
Features
PD22-73LF features: (1)Low cost; (2)Low profile; (3)Small SOT-6 package; (4)Available on tape and reel; (5)Available lead (Pb)-free and RoHS-compliant MSL-1 @ 260℃ per JEDEC J-STD-020.

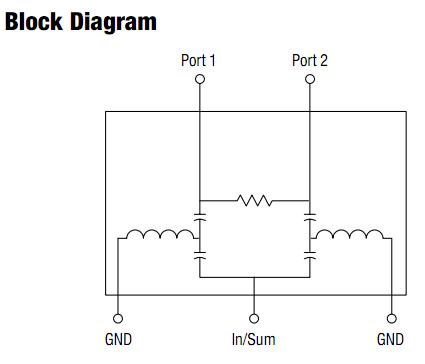

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PD22-73LF |
Skyworks Solutions, Inc. |
Transformers Audio & Signal 21.-2.3GHz Iso 18 dB Phase Bal +/- 1 deg |
Data Sheet |
|
|
||||||||||||
