Product Summary

The PCM1606E is a CMOS monolithic integrated circuit that features six 24-bit audio Digital-to-Analog Converters (DACs) and support circuitry in a small LQFP-48 package. The DACs utilize Texas Instrument’s enhanced multilevel, delta-sigma architecture that employs fourthorder noise shaping and 8-level amplitude quantization to achieve excellent signal-to-noise performance and a high tolerance to clock jitter. The applications of the PCM1606E are (1)integrated A/V receivers; (2)DVD movie and audio players; (3)hdtv receivers; (4)car audio systems; (5)DVD add-on cards for high-end pcs; (6)digital audio workstations; (7)other multichannel audio systems.

Parametrics

PCM1606E absolute maximum ratings: (1)Power Supply Voltage, VDD: +4.0V; (2)VCC: +6.5V; (3)Ground Voltage Differences: ±0.1V; (4)Digital Input Voltage: –0.3V to (6.5V + 0.3V); (5)Input Current (except power supply): ±10mA; (6)Operating Temperature Under Bias:–40 to +125℃; (7)Storage Temperature: –55 to +150℃; (8)Junction Temperature: +150℃; (9)Lead Temperature (soldering, 5s): +260℃; (10)Package Temperature (IR reflow, 10s): +235℃.

Features

PCM1606E features: (1)sampling frequency: 5kHz to 200kHz (Channels 1 and 2); 5kHz to 100kHz (Channels 3, 4, 5, and 6); (2)accepts 16-, 18-, 20-, and 24-bit audio data; (3)data formats: standard, i2s, and left-justified; (4)system clock: 128, 192, 256, 384, 512, or 768fs.

Diagrams

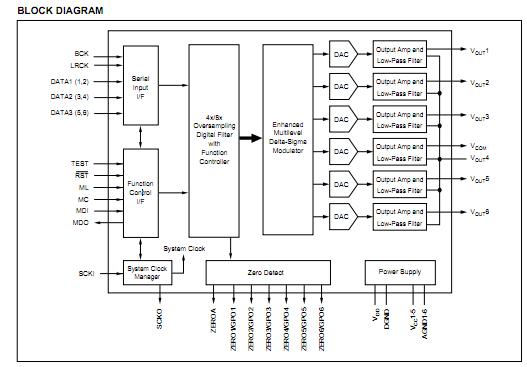

PCM1606E block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PCM1606E
PCM1606E
Texas Instruments
Audio D/A Converter ICs 24Bit/192kHz Smplg 6Ch Enh Mltl D-S DAC
Data Sheet
0-1: $3.55
1-25: $2.95
25-100: $2.59
100-250: $2.26
PCM1606E/2K
PCM1606E/2K
Texas Instruments
Audio D/A Converter ICs 24Bit/192kHz Smplg 6Ch Enh Mltl D-S DAC
Data Sheet
0-1640: $1.46
1640-2000: $1.46
PCM1606E/2KG4
PCM1606E/2KG4
Texas Instruments
Audio D/A Converter ICs 24Bit/192kHz Smplg 6Ch Enh Mltl D-S DAC
Data Sheet
0-1640: $1.46
1640-2000: $1.46
PCM1606EG4
PCM1606EG4
Texas Instruments
Audio D/A Converter ICs 24Bit/192kHz Smplg 6Ch Enh Mltl D-S DAC
Data Sheet
0-1: $2.85
1-25: $2.59
25-100: $2.00
100-250: $1.91
