Product Summary

The OP27GSZ-REEL is a Rail-to-Rail High Output Current Operational Amplifier. The applications of the device include Multimedia, Telecom, DAA Transformer Driver, LCD Driver,, Low Voltage Servo Control Modems and FET Drivers.

Parametrics

OP27GSZ-REEL absolute maximum ratings: (1)Supply Voltage: 16 V; (2)Input Voltage: 16 V; (3)Differential Input Voltage: ±1 V; (4)Output Short-Circuit Duration to GND: Indefinite; (5)Storage Temperature Range: –65℃ to +150℃; (6)Operating Temperature RangeG: –40℃ to +85℃; (7)Junction Temperature Range: –65℃ to +150℃; (8)Lead Temperature Range (Soldering, 60 sec): 300℃.

Features

OP27GSZ-REEL features: (1)Rail-to-Rail Inputs and Outputs; (2)High Output Current: ±60 mA; (3)Single Supply: 5 V to 12 V; (4)Wide Bandwidth: 5 MHz; (5)High Slew Rate: 3 V/μs; (6)Low Distortion: 0.01%; (7)Unity-Gain Stable; (8)No Phase Reversal; (9)Short-Circuit Protected; (10)Drives Capacitive Loads: 10 nF.

Diagrams

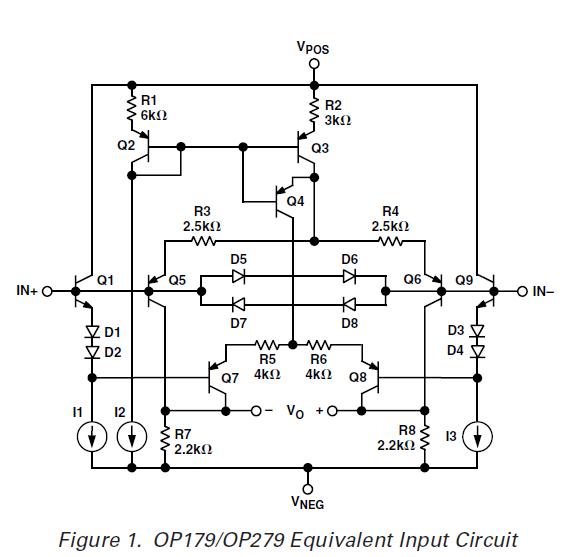

OP27GSZ-REEL Equivalent Input Circuit
