Product Summary
The OP193FSZ-REEL is a single-supply operational amplifier. It features a combination of high precision, low supply current and the ability to operate at low voltages. For high performance in single supply systems the input and output ranges include ground, and the outputs swing from the negative rail to within 600 mV of the positive supply. For low voltage operation the OP193FSZ-REELcan operate down to 1.7 volts or ±0.85 volts. The applications of the OP193FSZ-REEL are (1)Digital Scales; (2)Strain Gages; (3)Portable Medical Equipment; (4)Battery Powered Instrumentation; (5)Temperature Transducer Amplifier.
Parametrics
OP193FSZ-REEL absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Input Voltage: ±18 V; (3)Differential Input Voltage: ±18 V; (4)Output Short-Circuit Duration to Gnd: Indefinite; (5)Storage Temperature Range: –65 to +150℃; (6)Operating Temperature Range: –40 to +125℃; (7)Junction Temperature Range: –65 to +150℃; (8)Lead Temperature Range (Soldering, 60 sec): +300℃.
Features
OP193FSZ-REEL features: (1)Operates from +1.7 V to 618 V; (2)Low Supply Current: 15 mA/Amplifier; (3)Low Offset Voltage: 75 mV; (4)Outputs Sink and Source: 68 mA; (5)No Phase Reversal; (6)Single or Dual Supply Operation; (7)High Open-Loop Gain: 600 V/mV; (8)Unity-Gain Stable.

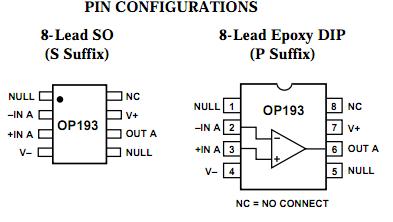

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 OP193FSZ-REEL |
|
IC OPAMP GP 35KHZ PREC 8SOIC |
Data Sheet |
|
|
||||||
|
OP193FSZ-REEL7 |
|
IC OPAMP GP 35KHZ PREC 8SOIC |
Data Sheet |
|
|
||||||
