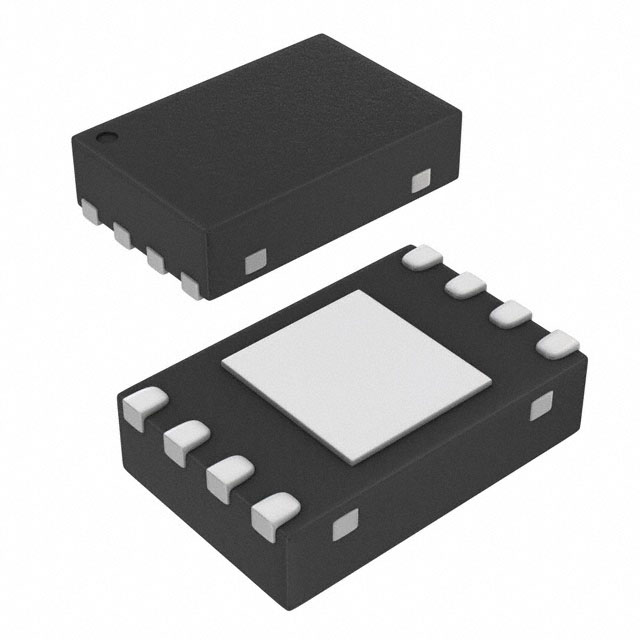

LT6552CDD#TRPBF

video difference amplifier, LT6552CDD#TRPBF, QFN, 12.6V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.35~3.32 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.35~3.32

PartNumber:: LT6552CDD#TRPBF

Brand:: Linear Technology - Linear | Pack: QFN | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:LT6552CDD#TRPBF
US $1.35 - 3.32
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LT6552CDD#TRPBF is a video difference amplifier optimized for low voltage single supply operation. This versatile amplifier features uncommitted high input impedance (+) and (–) inputs and can be used in differential or single-ended configurations. A second set of inputs gives gain adjustment and DC control to the differential amplifier. The applications of the LT6552CDD#TRPBF are (1)Differential to Single-Ended Conversion; (2)Video Line Driver; (3)Automotive Displays; (4)RGB Amplifiers; (5)Coaxial Cable Drivers; (6)Low Voltage High Speed Signal Processing.

Parametrics

LT6552CDD#TRPBF absolute maximum ratings: (1)Supply Voltage (V+ to V–): 12.6V; (2)Input Current:±10mA; (3)Input Voltage Range: V– to V+; (4)Differential Input Voltage, +Input (Pin 3) to –Input (Pin 2):±VS; (5)Output Short-Circuit Duration:Indefinite; (6)Operating Temperature Range:–40 to 85℃; (7)Specified Temperature Range:–40 to 85℃; (8)Maximum Junction Temperature: 150℃; (9)Storage Temperature Range:–65 to 150℃; (10)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LT6552CDD#TRPBF features: (1)Differential or Single-Ended Gain Block; (2)Wide Supply Range 3V to 12.6V; (3)Output Swings Rail-to-Rail; (4)Input Common Mode Range Includes Ground; (5)600V/μs Slew Rate; (6)–3dB Bandwidth = 75MHz, AV = ±2; (7)CMRR at 10MHz: >60dB; (8)Specified on 3.3V, 5V and ±5V Supplies; (9)High Output Drive: ±70mA; (10)Power Shutdown to 300μA; (11)Operating Temperature Range: –40 to 85℃; (12)Available in 8-Lead SO and; (13)Tiny 3mm x 3mm x 0.8mm DFN Packages.
