Product Summary
The LM8365BALMFX22 is a micropower undervoltage sensing circuit that is ideal for use in battery powered microprocessor based systems, where extended battery life is a key requirement. The applications of the LM8365BALMFX22 are (1)Low Battery Detection; (2)Microprocessor Reset Controller; (3)Power Fail Indicator; (4)Battery Backup Detection.
Parametrics
LM8365BALMFX22 absolute maximum ratings: (1)Supply Voltage: -0.3V to 6.5V; (2)RESET Output Voltage: -0.3V to 6.5V; (3)RESET Output Current; 70mA; (4)Storage Temperature Range: -65 to 150℃; (5)Mounting Temperature Lead Temp. (Soldering 10 sec): 260℃; (6)Junction Temperature: 125℃.
Features
LM8365BALMFX22 features: (1)Extremely Low Quiescent Current: 0.65μA, at VIN =2.87V; (2)High Accuracy Threshold Voltage (±2.5%); (3)Complementary or Open Drain Output; (4)Programmable output delay by external Capacitor; (5)(100ms typ with 0.1μF); (6)Input Voltage Range: 1V to 6V; (7)Surface Mount Package (5-Pin SOT23); (8)Pin for pin compatible with MC33465.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

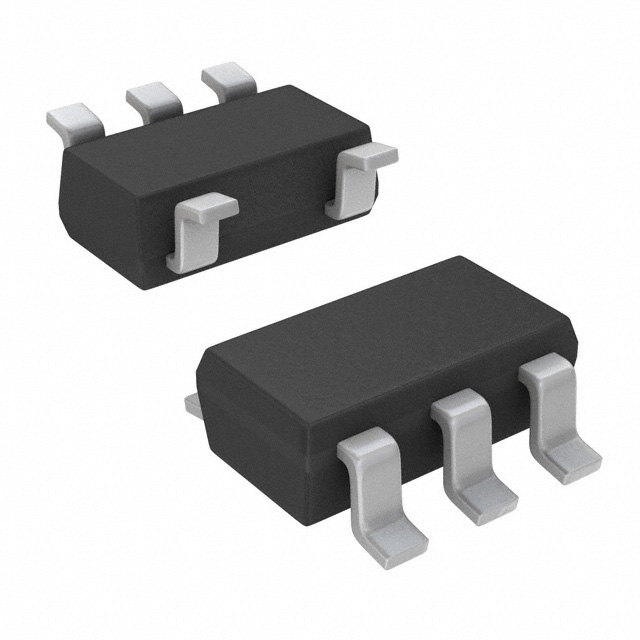

 LM8365BALMFX22 |
|
IC DETECT UNDERVOLT 2.2V SOT23-5 |
Data Sheet |
Negotiable |
|
||||||||||||
