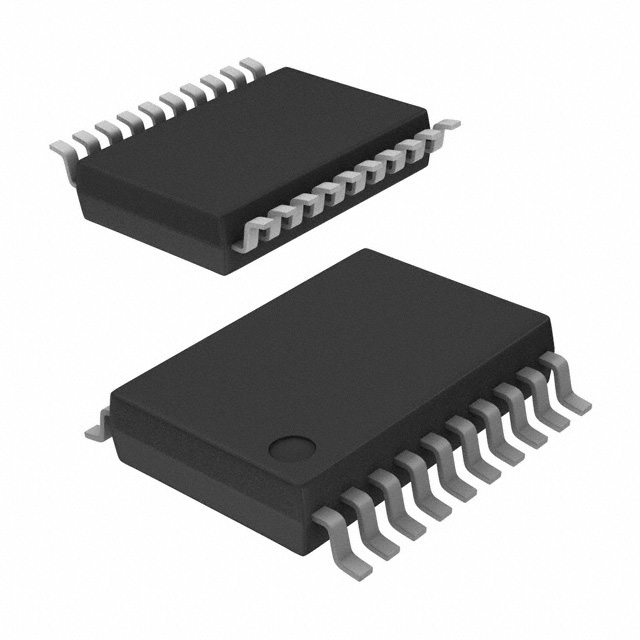

DAC7631E

DAC7631E, 12-bit, quad voltage output digital-to-analog converter, DIP, 10ms, -0.3V to 11V, 20mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $11.70~16.70 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $11.70~16.70

PartNumber:: DAC7631E

Brand:: Texas Instruments - TI | Pack: SSOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:DAC7631E
US $11.70 - 16.70
IRF3205

US $0.80 - 2.50 / Piece
(0) Remove
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

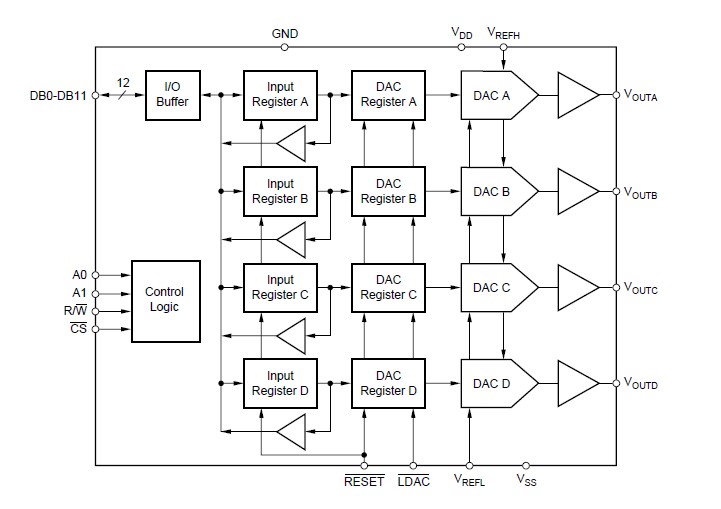

The DAC7631E is a 12-bit quad voltage output digital-to-analog converter. The DAC7631E is a 12-bit quad voltage output digital-to-analog converters with guaranteed 12-bit monotonic performance over the specified temperature range. The DAC7631E accepts 12-bit parallel input data, has double-buffered DAC input logic (allowing simultaneous update of all DACs), and provide a readback mode of the internal input registers. An asynchronous reset clears all registers to a mid-scale code of 800H. The DAC7631E can operate from a single +5V supply or from +5V and –5V supplies.

Parametrics

DAC7631E absolute maximum ratings: (1)VDD to VSS: –0.3V to 11V; (2)VDD to GND: –0.3V to 5.5V; (3)VREFL to VSS: –0.3V to (VDD – VSS); (4)VDD to VREFH: –0.3V to (VDD – VSS); (5)VREFH to VREFL: –0.3V to (VDD – VSS); (6)Digital Input Voltage to GND: –0.3V to VDD + 0.3V; (7)Digital Output Voltage to GND: –0.3V to VDD + 0.3V; (8)Maximum Junction Temperature: +150℃; (9)Operating Temperature Range: –40℃ to +85℃; (10)Storage Temperature Range: –65℃ to +150℃; (11)Lead Temperature (soldering, 10s): +300℃.

Features

DAC7631E features: (1)Low power: 20mW; (2)Unipolar or bipolar operation; (3)Settling time: 10ms to 0.012%; (4)12-bit linearity and monotonicity:–40 to +85℃; (5)Reset to mid-scale; (6)Data readback; (7)Double-buffered data inputs.
