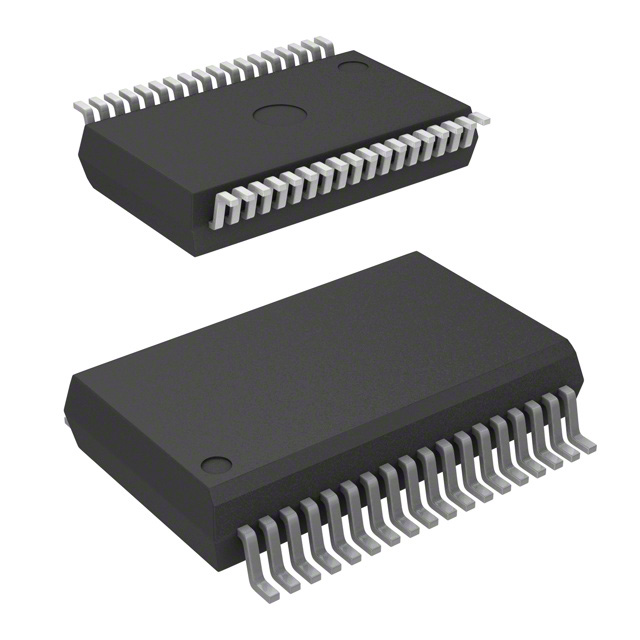

BTS4880R

Smart Power High-Side-Switch, SSOP36, -1V to 45V, Short circuit protection

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.11~3.99 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.11~3.99

PartNumber:: BTS4880R

Brand:: Infineon Technologies AG - Infineon | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-15

From Other Seller

Part Number:BTS4880R
US $2.11 - 3.99
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The BTS4880R is a smart power high-side-switch. It is suitable for output driver for industrial applications (PLC), All types of resistive, inductive and capacitive loads, optocoupler compatible power switch for 24 V DC applications and replaces electromechanical relays and discrete circuits.

Parametrics

BTS4880R absolute maximum ratings: (1)Supply voltage Vbb: -1 to 45 V; (2)Continuous input voltage2) VIN: -10Vbb; (3)Continuous voltage at LS-pin VLS: -1Vbb; (4)Current through input pin (DC), each channel, IIN: ±5 mA; (5)Reverse current through GND-pin), -IGND: 1.6 A; (6)Storage temperature, Tstg: -55 to +150℃; (7)Power dissipation, Ptot: 3.3 W.

Features

BTS4880R features: (1)Output current 0,625 A per channel; (2)Short circuit protection; (3)Maximum current internally limited; (4)Overload protection; (5)Input protection; (6)Overvoltage protection (including load dump); (7)Undervoltage shutdown with autorestart and hysteresis; (8)Switching inductive loads; (9)Thermal shutdown with restart; (10)Thermal independence of separate channels; (11)ESD - Protection; (12)Loss of GND and loss of Vbb protection; (13)Very low standby current; (14)Reverse battery protection; (15)Programmable input for CMOS or Vbb/2; (16)Common diagnostic output ( current output ) for overtemperature.
