Product Summary
The AD1584BRTZ-REEL7 is a low cost, low power, low dropout, precision band gap reference. The AD1584BRTZ-REEL7 is available as three-terminal (series) devices and are packaged in the compact SOT-23, 3-lead surface-mount package. The versatility of these references makes them ideal for use in battery-powered 3 V or 5 V systems where there may be wide variations in supply voltage and a need to minimize power dissipation.
Parametrics
AD1584BRTZ-REEL7 absolute maximum ratings: (1)VIN to Ground: 12 V; (2)Internal Power Dissipation: 400 mW; (3)Storage Temperature Range: –65 to +125℃; (4)Specified Temperature Range: –40 to +125℃; (5)Lead Temperature, Soldering: 215℃.
Features
AD1584BRTZ-REEL7 features: (1)Series Reference (2.5 V, 3 V, 4.096 V, 5 V); (2)Low Quiescent Current: 70 μA max; (3)Current Output Capability: ±5 mA; (4)Wide Supply Range: VIN = VOUT + 200 mV to 12 V; (5)Wideband Noise (10 Hz to 10 kHz): 50 μV rms; (6)Specified Temperature Range: –40 to +125℃; (7)Compact, Surface-Mount SOT-23 Package.

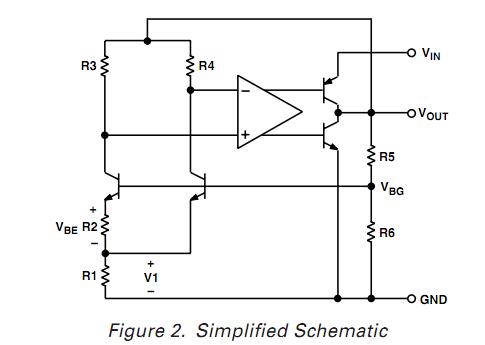

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD1584BRTZ-REEL7 |
|
IC VREF SRS PREC 4.096V SOT23-3 |
Data Sheet |
|
|
||||||||||||||||||
