Product Summary
The A3P060-VQG100I is a flash FPGA, offers performance, density, and features beyond those of the ProASICPLUS family. Nonvolatile flash technology gives the A3P060-VQG100I the advantage of being a secure, low-power, single-chip solution that is live at power-up (LAPU). The A3P060-VQG100I is reprogrammable and offers time-to-market benefits at an ASIC-level unit cost. These features enable designers to create high-density systems using existing ASIC or FPGA design flows and tools.
Parametrics
A3P060-VQG100I absolute maximum ratings: (1)VCC, DC core supply voltage: –0.3 to 1.65 V; (2)VJTAG, JTAG DC voltage: –0.3 to 3.75 V; (3)VPUMP, Programming voltage: –0.3 to 3.75 V; (4)VCCPLL, Analog power supply (PLL): –0.3 to 1.65 V; (5)VCCI, DC I/O output buffer supply voltage: –0.3 to 3.75 V; (6)VMV, DC I/O input buffer supply voltage: –0.3 to 3.75 V; (7)VI, I/O input voltage: –0.3 V to 3.6 V; (8)TSTG, Storage temperature: –65 to +150℃; (9)TJ, Junction temperature: +125℃.
Features
A3P060-VQG100I features: (1)High Capacity; (2)Reprogrammable Flash Technology; (3)High Performance; (4)In-System Programming (ISP) and Security; (5)Low Power; (6)High-Performance Routing Hierarchy; (7)Advanced I/O; (8)Clock Conditioning Circuit (CCC) and PLL; (9)Embedded Memory; (10)ARM Processor Support in ProASIC3 FPGAs.

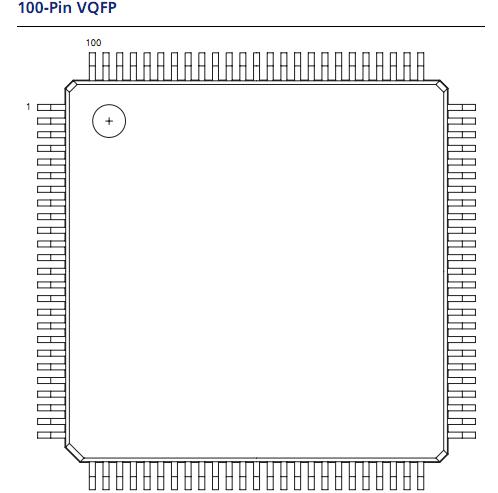

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 A3P060-VQG100I |
|
IC FPGA 1KB FLASH 60K 100-VQFP |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
|
A3P015-1QNG68 |
|
IC FPGA 1KB FLASH 15K 68-QFN |
Data Sheet |
|
|
||||||
|
A3P060-1VQG100 |
|
IC FPGA 1KB FLASH 60K 100-VQFP |
Data Sheet |
|
|
||||||
|
A3P060-1VQG100I |
|
IC FPGA 1KB FLASH 60K 100-VQFP |
Data Sheet |
|
|
||||||
|
A3P060-1VQG100T |
|
IC FPGA 1KB FLASH 60K 100-VQFP |
Data Sheet |
|
|
||||||
|
A3P060-2FG144 |
|
IC FPGA 1KB FLASH 60K 144-FBGA |
Data Sheet |
|
|
||||||
|
A3P060-2FG144I |
|
IC FPGA 1KB FLASH 60K 144-FBGA |
Data Sheet |
|
|
||||||
