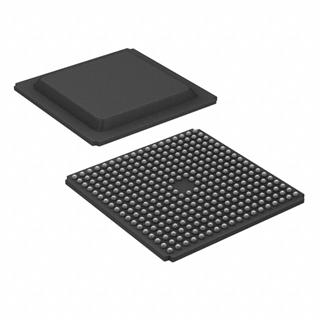

XC3S200A-4FGG320I

Product Summary

The XC3S200A-4FGG320I is a Field-Programmable Gate Array (FPGA) which solves the design challenges in many highvolume, cost-sensitive electronic applications. With 12 devices ranging from 50,000 to 3.4 million system gates, the Extended Spartan-3A family provides a broad range of densities and package options, integrated DSP MACs, and low total system cost while increasing functionality. The XC3S200A-4FGG320I includes the Spartan-3A devices and the higher density Spartan-3A DSP devices. The XC3S200A-4FGG320I also includes the nonvolatile Spartan-3AN devices, which combine leading-edge FPGA and flash technologies to provide a new evolution in security, protection and functionality, ideal for space-critical or secure applications.

Parametrics

XC3S200A-4FGG320I absolute maximum ratings: (1)System Gates: 200K; (2)Equivalent Logic Cells: 4,032; (3)CLBs: 448; (4)Slices: 1,792; (5)Distributed RAM Bits: 28K; (6)Block RAM Bits: 288K; (7)In-System Flash Bits: 4M; (8)Dedicated Multipliers: 16; (9)DCMs: 4; (10)Maximum User I/O: 248.

Features

XC3S200A-4FGG320I features: (1)Very low-cost, high-performance logic solution for highvolume, cost-conscious applications; (2)Low-cost QFP and BGA packaging, Pb-free options; (3)Flexible power management; (4)Leading connectivity platform; (5)Abundant, flexible logic resources; (6)Dedicated resources for high-speed digital signal processing applications; (7)Precise clock management with up to eight Digital Clock Managers (DCMs); (8)Integrated flash memory in Spartan-3AN devices; (9)Eight low-skew global clock networks, eight additional clocks per half device, plus abundant low-skew routing; (10)Hierarchical SelectRAM memory architecture; (11)Configuration interface to industry-standard PROMs; (12)Complete Xilinx ISE and free WebPACK development system software support; (13)MicroBlaze and PicoBlaze embedded processors reduce risk; (14)Low-cost starter kits from Xilinx, distributors, and third parties; (15)XA versions available for Automotive applications.

Diagrams
