Product Summary

The XAM3517ZCN is a high-performance, industrial applications processor with video, image, and graphicsprocessing sufficient to support the following: Single Board Computers, Home and Industrial automation, Digital Signage.

Parametrics

XAM3517ZCN absolute maximum ratings: (1)VDD_CORE, Supply voltage range for core macros: -0.5 to 1.6V; (2)VDDS, Second supply voltage range for 1.8-V I/O macros: -0.5 to 2.25V; (3)VDDSHV, Supply voltage range for 1.8/3.3V I/O macros: -TBD to TBDV; (4)VDDS_SRAM_MPU, Analog Supply voltage range for 1.8-V MPU SLDO: -TBD to TBDV; (5)VDDS_SRAM_CORE_BG, Analog Supply voltage range for 1.8-V Core SLDO and VDDA of BandGap: -TBD to TBDV; (6)VDDS_DPLL_MPU A_USBHOST, Analog power supply for 1.8-V MPUSS DPLL and USBHOST DPLL: -TBD to TBDV; (7)VDDS_DPLL_PER_CORE, Analog power supply for 1.8-V DPLL and HSDIVIDER/ CORE and HSDIVIDER: -TBD to TBDV; (8)VDDA_DAC, Analog Power Supply for 1.8-V DAC: -TBD to TBDV; (9)VDDA3P3V_USBP HY, Analog power supply for 3.3-V USB transceiver: -TBD to TBDV; (10)HYVDDA1P8V_USBP, Power Supply for 1.8-V USB transceiver: -TBD to TBDV; (11)HYVDDSOSC, Power Supply for 1.8-V oscillator: -TBD to TBDV; (12)VPAD, Voltage range at PAD: -0.5 to Vdds + 0.5V; (13)vdda, Supply voltage range for analog macros: -0.5 to 2.43V; (14)VESD, ESD stress voltage(1)HBM (human body model): TBD; VCDM (charged device model): TBD; (15)IIOI, Current-pulse injection on each I/O pin: 200mA; (16)Iclamp, Clamp current for an input or output: -20 to 20mA; (17)Tstg, Storage temperature range: -65 to 150℃.

Features

XAM3517ZCN features: (1)Software Compatible with OMAPTM 3 Processors; (2)MPU Subsystem, 500-MHz ARM Cortex-A8 Core; NEON SIMD Coprocessor and Vector floating point (FP) co-processor; (3)Memory Interfaces: 16/32- bit DDR2 Interface with 1 GByte total addressable space; General Purpose Memory Interface supporting 16-bit Wide Multiplexed Address/Data bus; 64 K-Byte shared SRAM; 3 Removable Removable Media Interfaces [MMC/SD/SDIO]; (4)IO Voltage: DDR2 IOs: 1.8V; Other IOs: 1.8V and 3.3V,1.2V Core Voltage; (5)Commerial and Industrial temperature grade; (6)16-bit Video Input Port capable of capturing HD video; (7)491-pin sBGA package (17x17, .65 mm pitch); (8)HD resolution Display Subsystem; (9)Serial Communication, High-End CAN Controller; 10/100 Mbit Ethernet MAC; USB OTG subsystem with standard DP/DM interface[HS/FS/LS]; Multiport USB Host Subsystem; Four Master/Slave Multichannel Serial Port Interface (McSPI) Ports; Five Multichannel Buffered Serial Ports.

Diagrams

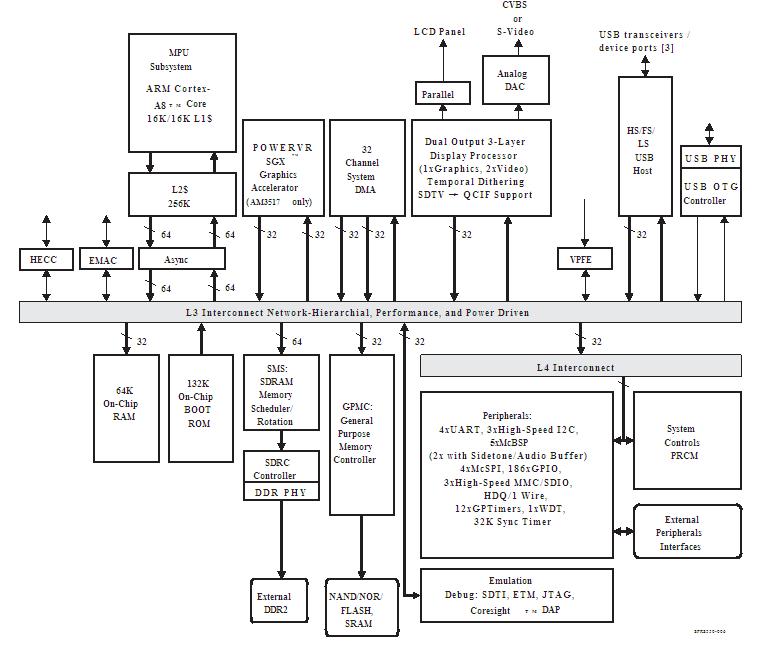

XAM3517ZCN block diagram
