Product Summary

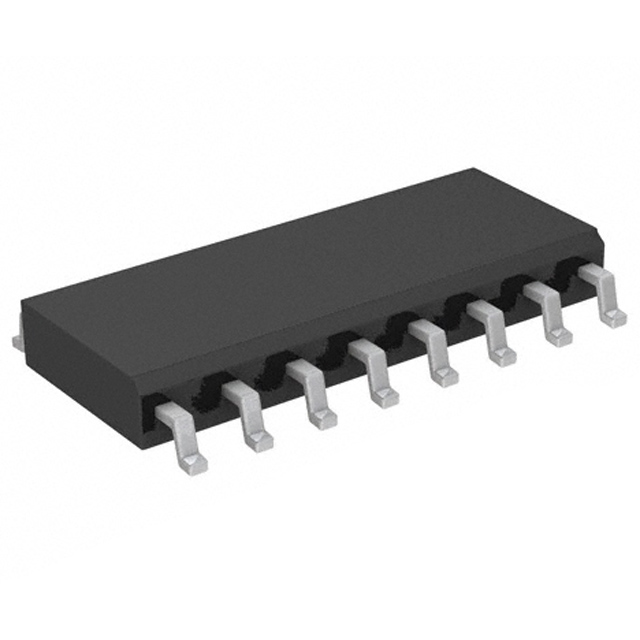

The UAF42AU is a universal active filter. Although the UAF42AU active filter is vital in modern electronics, its design and verification can be tedious and time consuming. To aid in the design of active filters, Burr-Brown provides a series of FilterPro. computer-aided design programs. Using the FILTER42 program and the UAF42AU it is easy to design and implement all kinds of active filters. The UAF42AU is a monolithic IC which contains the op amps, matched resistors, and precision capacitors needed for a state-variable filter pole-pair. A fourth, uncommitted precision op amp is also included on the die.
Parametrics
UAF42AU absolute maximum ratings: (1)Power Supply Voltage: ±18 V; (2)Input Voltage ±VS: ±0.7 V; (3)Output Short-Circuit: Continuous; (4)Operating Temperature: –40 to +85 ℃; (5)Storage Temperature: –40 to +125 ℃; (6)Junction Temperature: +125 ℃.
Features
UAF42AU features: (1)Low-Pass, High-Pass; (2)Band-Pass, Band-Reject; (3)Simple design procedure; (4)Accurate frequency and Q: Includes On-Chip 1000pF ±0.5% Capacitors.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 UAF42AU |
Texas Instruments |
Active Filters Universal Active Filter |
Data Sheet |
|
|
||||||||||||
 |
UAF42AU-1 |
Texas Instruments |
IC UNIV ACTIVE FILTER 16-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||
|
UAF42AUE4 |
Texas Instruments |
Active Filters Universal Active Filter |
Data Sheet |
|
|
||||||||||||
