Product Summary
The UAF42AP is a filter design program for the UAF42 universal active filter. The UAF42AP contains the op amps, matched resistors, and precision capacitors needed for a state-variable filter pole-pair. A fourth, uncommitted precision op amp is also included on the die. The UAF42AP DOS-compatible program guides you through the design process and automatically calculates component values. Low-pass, high-pass, band-pass, and band-reject (or notch) filters can be designed.
Parametrics
UAF42AP absolute maximum ratings: (1)BW: 4MHz typ; (2)FPR: 160KHz typ; (3)SP: 10V/μs typ; (4)VOS: 5000μV max; (5)VOS/dT: ±3μV/℃ max typ; (6)noise at 10kHz: 10nV/Hz; (7)CCM: 4pF.
Features
UAF42AP features: (1)Better rate of attenuation beyond the pass-band than Butterworth; (2)Flat magnitude response in pass-band with steep rate of attenuation in transition-band; (3)Best step response—very little overshoot or ringing.

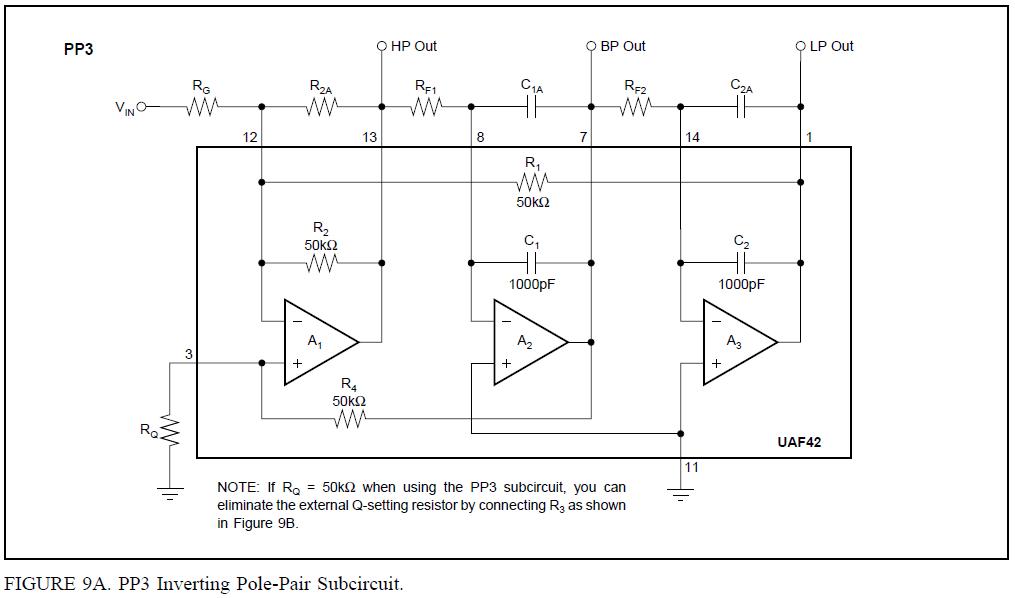

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 UAF42AP |
Texas Instruments |
Active Filters Universal Active Filter |
Data Sheet |
|
|
||||||||||||
 |
UAF42AP-1 |
Texas Instruments |
IC UNIVERSAL ACTIVE FILTER 14DIP |
Data Sheet |
Negotiable |
|
||||||||||||
|
UAF42APG4 |
Texas Instruments |
Active Filters Universal Active Filter |
Data Sheet |
|
|
||||||||||||
