Product Summary

The UA78L05CD is a fixed-voltage integrated-circuit voltage regulator designed for a wide range of applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, the UA78L05CD can be used with power-passelements to make high-current voltage regulators. The regulator can deliver up to 100 mAof output current.

Parametrics

UA78L05CD absolute maximum ratings: (1)Input voltage, VI: μA78L02AC, μA78L05C, μA78L09C, μA78L10AC: 30 V; (2)μA78L12C, μA78L12AC, μA78L15C, μA78L15AC: 35 V; (3)Virtual junction temperature, TJ: 150℃; (4)Storage temperature range, Tstg: -65℃ to 150℃.

Features

UA78L05CD features: (1)3-Terminal Regulators; (2)Output Current Up To 100 mA; (3)No External Components; (4)Internal Thermal-Overload Protection; (5)Internal Short-Circuit Current Limiting.

Diagrams

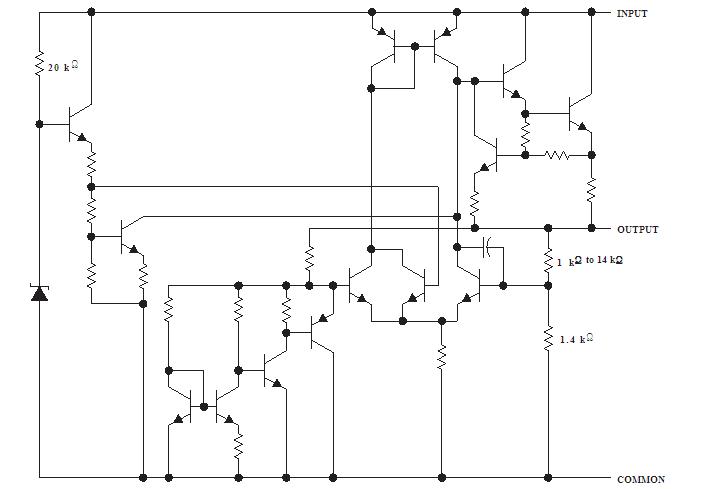

UA78L05CD block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
UA78L05CD
UA78L05CD
Texas Instruments
Linear Regulators - Standard 5.0V 100mA
Data Sheet
0-1: $0.28
1-25: $0.20
25-100: $0.17
100-250: $0.15
