Product Summary

The TUSB2046BVF is a 3.3-V CMOS hub device that provides one upstream port and four downstream ports in compliance with the 1.1 Universal Serial Bus (USB) specification. And the TUSB2046BVF provides the flexibility of using a 6-MHz or a 48-MHz clock. The logic level of the TSTMODE terminal controls the selection of the clock source. When TSTMODE is low, the output of the internal APLL circuitry is selected to drive the internal core of the TUSB2046BVF. When TSTMODE is high, the TSTPLL/48MCLK input is selected as the input clock source and the APLL circuitry is powered down and bypassed.

Parametrics

TUSB2046BVF absolute maximum ratingS: (1)Supply voltage range, Vcc: -0.5 V to 3.6 V;(2)Input voltage range: -0.5 V to VCC+0.5 V;(3)Output voltage range: -0.5 V to VCC+0.5 V;(4)Input clamp current, IIK: ±20 mA;(5)Output clamp current, IOK: ±20 mA;(6)Storage temperature range: -65℃to 150℃;(7)Operating free-air temperature range: 0℃to 70℃.

Features

TUSB2046BVF features:(1)Universal Serial Bus (USB) Version 1.1 Compliant; (2)32-Terminal LQFP Package With a 0.8-mm Terminal Pitch; (3)3.3-V Low Power ASIC Logic; (4)Integrated USB Transceivers; (5)State Machine Implementation Requires No Firmware Programming; (6)One Upstream Port and Four Downstream Ports; (7)All Downstream Ports Support Full-Speed and Low-Speed Operations; (8)Power Switching and Overcurrent Reporting Is Provided Ganged or Per Port; (9)Supports Suspend and Resume Operations; (10)Supports Programmable Vendor ID and Product ID With External Serial EEPROM; (11)3-State EEPROM Interface Allows EEPROM Sharing; (12)Package Pinout Allows 2-Layer PCB; (13)Low EMI Emission Achieved by a 6-MHz Crystal Input; (14)Migrated From Proven TUSB2040 Hub; (15)Lower Cost Than the TUSB2040 Hub; (16)Enhanced System ESD Performance.

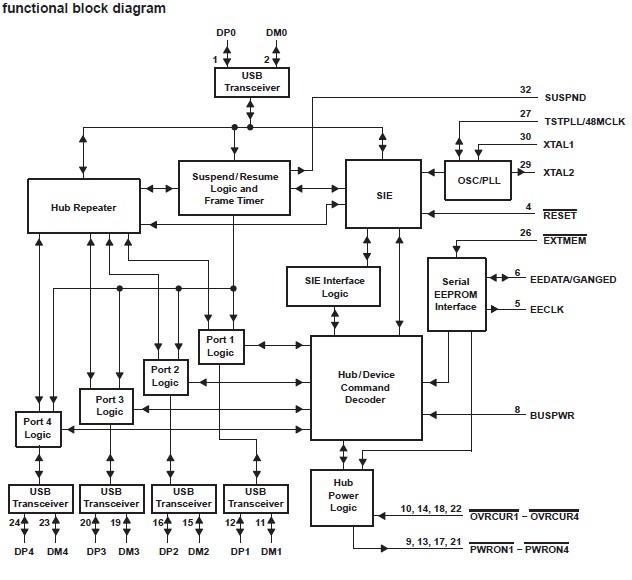

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

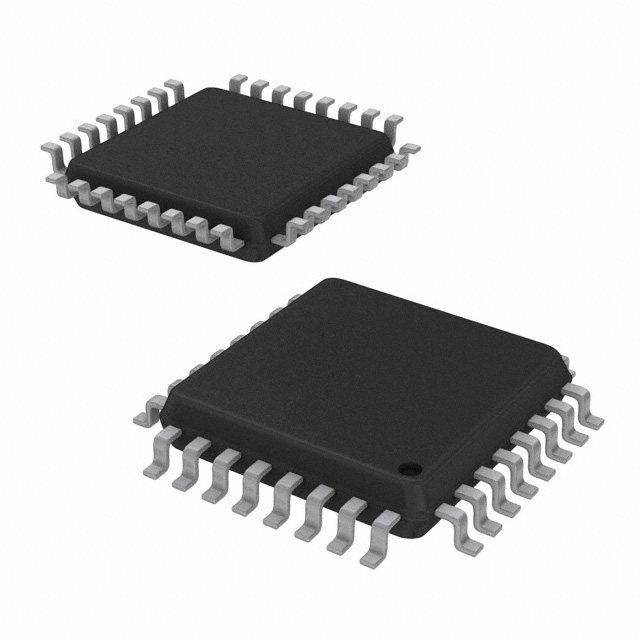

TUSB2046BVF
TUSB2046BVF

Texas Instruments

USB Interface IC 4-Port USB Hub

Data Sheet

0-1: $2.14
1-25: $1.96
25-100: $1.57
100-250: $1.36
TUSB2046BVFG4
TUSB2046BVFG4

Texas Instruments

USB Interface IC 4-Port Full-Speed Hub

Data Sheet

0-1: $2.41
1-25: $1.93
25-100: $1.76
100-250: $1.61
TUSB2046BVFRG4
TUSB2046BVFRG4

Texas Instruments

USB Interface IC 4-Port Full-Speed Hub

Data Sheet

0-1: $1.80
1-25: $1.48
25-100: $1.33
100-250: $1.22
TUSB2046BVFR
TUSB2046BVFR

Texas Instruments

USB Interface IC 4port Hub

Data Sheet

0-1: $2.13
1-25: $1.74
25-100: $1.48
100-250: $1.33
