Product Summary

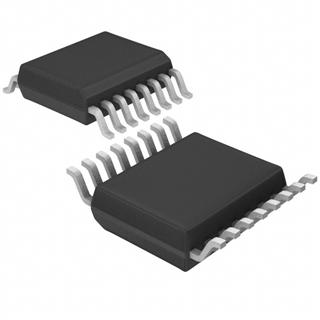

The TSC2046IPWR is a low voltage I/O touch screen controller. It supports a low-voltage I/O interface from 1.5V to 5.25V. The TSC2046IPWR is 100% pincompatible with the existing ADS7846, and will drop into the same socket. This allows for easy upgrade of current applications to the new version. The TSC2046IPWR also has an onchip 2.5V reference that can be used for the auxiliary input, battery monitor, and temperature measurement modes. Applications include personal digital assistants, portable instruments, point-of-sale terminals, pagers, touch screen monitors, cellular phones.

Parametrics

TSC2046IPWR absolute maximum ratings: (1)+VCC and IOVDD to GND: –0.3V to +6V; (2)Analog Inputs to GND: –0.3V to +VCC + 0.3V; (3)Digital Inputs to GND: –0.3V to IOVDD + 0.3V; (4)Power Dissipation: 250mW; (5)Maximum Junction Temperature: +150℃; (6)Operating Temperature Range: –40℃ to +85℃; (7)Storage Temperature Range: –65℃ to +150℃; (8)Lead Temperature (soldering, 10s): +300℃.

Features

TSC2046IPWR features: (1)same pinout as ads7846; (2)2.2v to 5.25v operation; (3)1.5v to 5.25v digital i/o; (4)internal 2.5v reference; (5)direct battery measurement (0v to 6v); (6)on-chip temperature measurement; (7)touch-pressure measurement; (8)qspitm and spitm 3-wire interface; (9)auto power-down; (10)available in tssop-16, qfn-16, and vfbga-48 packages.

Diagrams

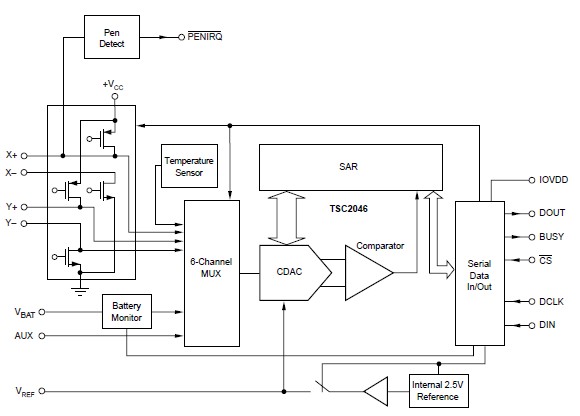

TSC2046IPWR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TSC2046IPWR
TSC2046IPWR

Texas Instruments

Touch Screen Converters & Controllers 4-Wire w/low voltage digital I/O

Data Sheet

0-1: $1.45
1-25: $1.18
25-100: $1.06
100-250: $0.94
TSC2046IPWRG4
TSC2046IPWRG4

Texas Instruments

Touch Screen Converters & Controllers 4-Wire w/low voltage digital I/O

Data Sheet

0-1800: $0.64
1800-2000: $0.61
2000-2500: $0.61
2500-5000: $0.58
