Product Summary

The TS3USB221DRCR is a high-bandwidth switch specially designed for the switching of high-speed USB2.0 signals in handset and consumer applications, such as cell phones, digital cameras, and notebooks with hubs or controllers with limited USB I/Os. The wide bandwidth (1.1 GHz) of this switch allows signals to pass with minimum edge and phase distortion. The applications of the TS3USB221DRCR include Routes Signals for USB 1.0, 1.1, and 2.0.

Parametrics

TS3USB221DRCR absolute maximum ratings: (1)VCC, Supply voltage range: -0.5 to 4.6V; (2)VIN, Control input voltage range: -0.5 to 7V; (3)VI/O, Switch I/O voltage range: -0.5 to 7V; (4)IIK, Control input clamp current, VIN < 0: -50mA; (5)II/OK, I/O port clamp current, VI/O < 0: -50mA; (6)II/O, ON-state switch current: ±64mA; (7)Continuous current through VCC or GND: ±100mA; (8)θJA, Package thermal impedance, DRC package: 48.7℃/W; RSE package: TBD℃/W; ZXU package: TBD℃/W; (9)Tstg, Storage temperature range: -65 to 150℃.

Features

TS3USB221DRCR features: (1)VCC Operation at 2.5 V and 3.3 V; (2)VIO Accepts Signals up to 5.5 V; (3)1.8-V Compatible Control-Pin Inputs; (4)Low-Power Mode When OE Is Disabled (1 μA); (5)ron = 6 Ω Max; (6)ron = 0.2Ω Typ; (7)Cio(on) = 6 pF Max; (8)Low Power Consumption (30 μA Max); (9)ESD > 2000-V Human-Body Model (HBM); (10)High Bandwidth (1.1 GHz Typ).

Diagrams

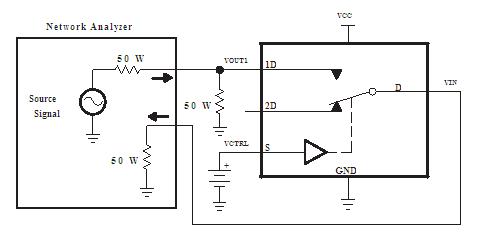

TS3USB221DRCR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

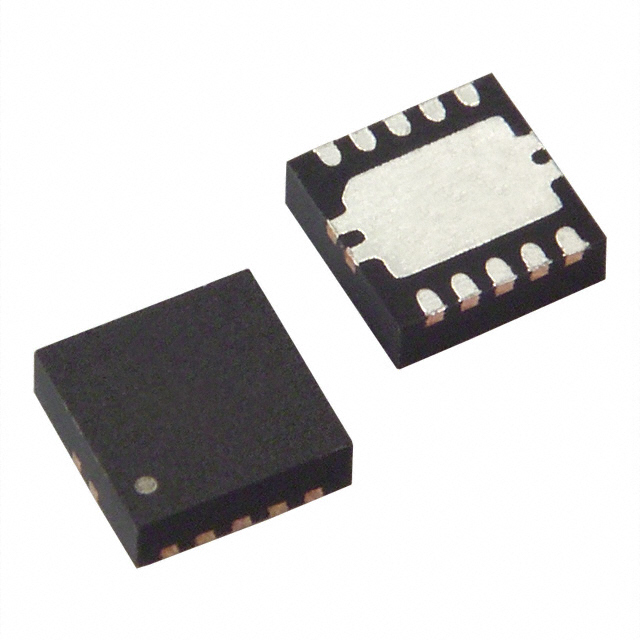

TS3USB221DRCR
TS3USB221DRCR

Texas Instruments

Power Switch ICs - USB HS USB 2.0 (480Mbps) 1:2 Multiplexer/De

Data Sheet

0-1: $1.03
1-25: $0.92
25-100: $0.83
100-250: $0.72
TS3USB221DRCRG4
TS3USB221DRCRG4

Texas Instruments

Power Switch ICs - USB Hi-Spd USB 2.0 1:2 Multi/Demul Sw

Data Sheet

0-2150: $0.50
2150-3000: $0.48
3000-6000: $0.46
6000-12000: $0.44
