TS3A5018D

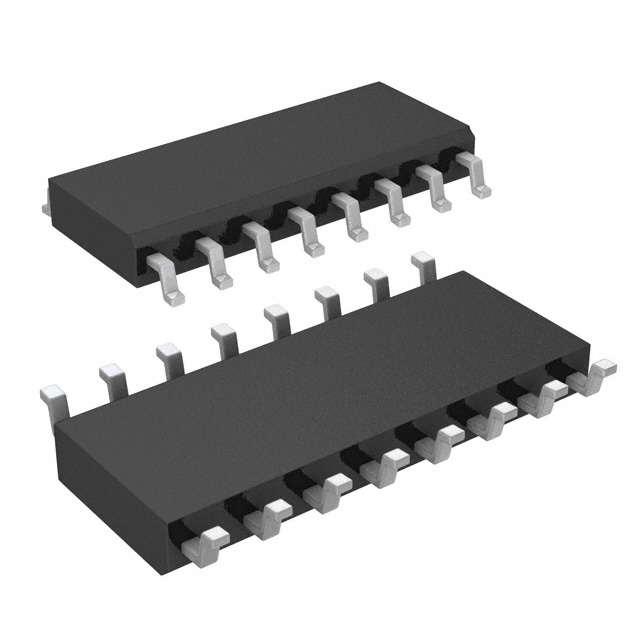

TS3A5018D, quad SPDT analog switch, SOIC, 10Ω, -0.5 to 4.6V, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.22~0.38 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.22~0.38

PartNumber:: TS3A5018D

Brand:: Texas Instruments - TI | Pack: SOIC | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:TS3A5018D
US $0.22 - 0.38
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The TS3A5018D is a dual single-pole quadruple-throw (SPDT) analog switch that is designed to operate from 2.3 V to 3.6 V. This device can handle both digital andanalog signals, and signals up to V+ can be transmitted in either direction. The applications of the TS3A5018D include Sample-and-Hold Circuit, Battery-Powered Equipment, Audio and Video Signal Routing, Communication Circuits.

Parametrics

TS3A5018D absolute maximum ratings: (1)V+, Supply voltage range: -0.5 to 4.6V; (2)VS, VD, Analog voltage range: -0.5 to 4.6V; (3)IK, Analog port diode current, VS, VD < 0: -50mA; (4)IS, ID, On-state switch current, VS, VD = 0 to 7 V: -128 to 128mA; (5)VI, Digital input voltage range: -0.5 to 4.6V; (6)IIK, Digital input clamp current, VI < 0: -50mA; (7)I+, Continuous current through V+: 100mA; (8)IGND, Continuous current through GND: -100mA; (9)Tstg, Storage temperature range: -65 to 150℃.

Features

TS3A5018D features: (1)Isolation in the Powered-Down Mode, V+ = 0; (2)Low ON-State Resistance (10 W); (3)Low Charge Injection; (4)Excellent ON-State Resistance Matching; (5)Low Total Harmonic Distortion (THD); (6)2.3-V to 3.6-V Single-Supply Operation; (7)Latch-Up Performance Exceeds 100 mA PerJESD 78, Class II; (8)ESD Performance Tested Per JESD 22, 2000-V Human-Body Model(A114-B, Class II); 1000-V Charged-Device Model (C101).
