Product Summary

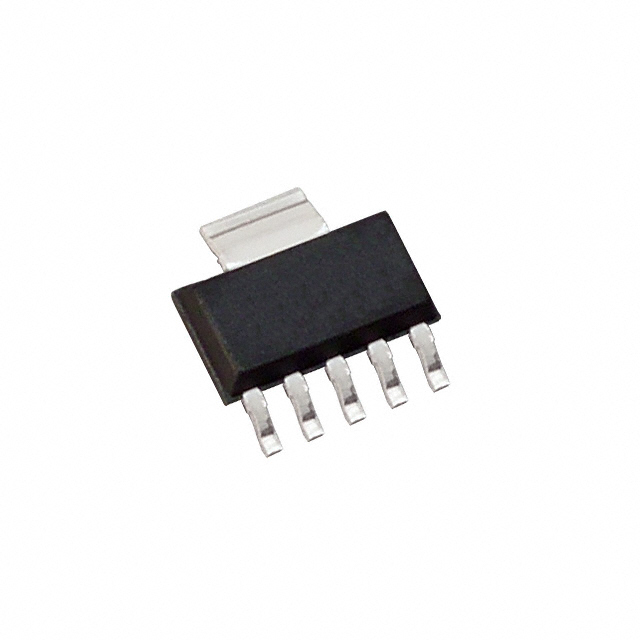

The TPS79428DCQR is a low-dropout (LDO) low-power linear voltage regulator features high power-supply rejection ratio (PSRR), ultralow-noise, fast start-up, and excellent line and load transient responses in NanoStar wafer chip scale and SOT23 packages. NanoStar packaging gives an ultrasmall footprint as well as an ultralow profile and package weight, making it ideal for portable applications such as handsets and PDAs. The applications of the TPS79428DCQR include RF: VCOs, Receivers, ADCs, Audio, Cellular and Cordless Telephones, Bluetooth, Wireless LAN, Handheld Organizers, PDAs.

Parametrics

TPS79428DCQR absolute maximum ratings: (1)Input voltage range: -0.3 V to 6 V; (2)Voltage range at EN: -0.3 V to VI + 0.3 V; (3)Voltage on OUT: -0.3 V to 6 V; (4)Peak output current: Internally limited; (5)ESD rating, HBM: 2 kV; (6)ESD rating, CDM: 500 V; (7)Continuous total power dissipation: See Dissipation Rating Table; (8)Operating virtual junction temperature range, TJ: -40℃ to 150℃; (9)Operating ambient temperature range, TA: -40℃ to 85℃; (10)Storage temperature range, Tstg: -65℃ to 150℃.

Features

TPS79428DCQR features: (1)250-mA RF Low-Dropout Regulator With Enable; (2)Available in 1.8-V, 2.5-V, 2.8-V, 2.85-V, 3-V, 3.3-V, 4.75-V, and Adjustable (1.2-V to 5.5-V); (3)High PSRR (60 dB at 10 kHz); (4)Ultralow-Noise (32 μVRMS, TPS79428); (5)Fast Start-Up Time (50 μs); (6)Stable With a 2.2-μF Ceramic Capacitor; (7)Excellent Load/Line Transient Response; (8)Very Low Dropout Voltage (155 mV at Full Load); (9)Available in MSOP-8 and SOT223-6 Packages.

Diagrams

TPS79428DCQR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TPS79428DCQRG4
TPS79428DCQRG4

Texas Instruments

Low Dropout (LDO) Regulators High PSRR Fast RF High-Enable 250-mA

Data Sheet

0-1610: $0.55
1610-2000: $0.52
2000-2500: $0.52
2500-5000: $0.50
TPS79428DCQR
TPS79428DCQR

Texas Instruments

Low Dropout (LDO) Regulators High PSRR Fast RF High-Enable 250-mA

Data Sheet

0-1610: $0.55
1610-2000: $0.52
2000-2500: $0.52
2500-5000: $0.49
