Product Summary

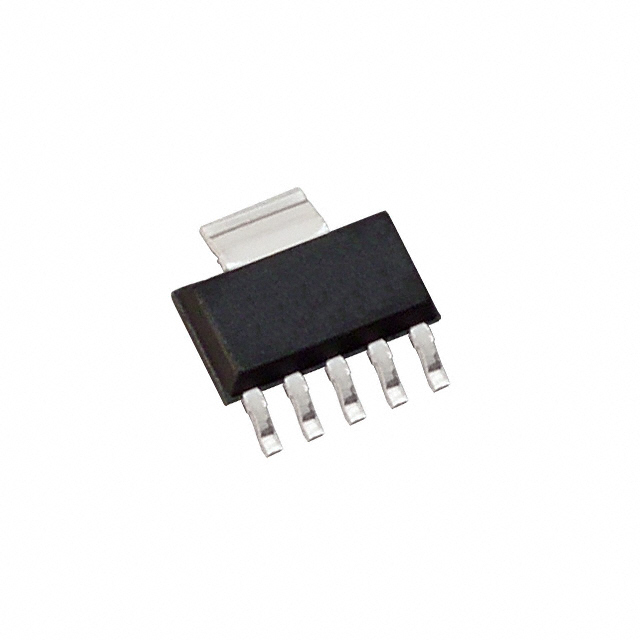

The TPS78618DCQR is a low-dropout (LDO) low-power linear voltage regulator features high power supply rejection ratio (PSRR), ultralow noise, fast start-up, and excellent line and load transient responses in small outline, SOT223-6 and 5-pin DDPAK packages. Each device in the family isstable, with a small 1-μF ceramic capacitor on the output. The applications of the TPS78618DCQR include RF: VCOs, Receivers, ADCs, Audio, Bluetooth, Wireless LAN, Cellular and Cordless Telephones, Handheld Organizers, PDAs.
Parametrics
TPS78618DCQR absolute maximum ratings: (1)VIN range: -0.3 V to 6 V; (2)VEN range: -0.3 V to VIN + 0.3 V; (3)VOUT range: 6 V; (4)Peak output current: Internally limited; (5)ESD rating, HBM: 2 kV; (6)ESD rating, CDM: 500 V; (7)Continuous total power dissipation: See Dissipation Ratings table; (8)Junction temperature range, TJ: -40℃ to 150℃; (9)Storage temperature range, Tstg: -65℃ to 150℃.
Features
TPS78618DCQR features: (1)1.5 A Low-Dropout Regulator With Enable; (2)Available in 1.8-V, 2.5-V, 2.8-V, 3-V, 3.3-V, and Adjustable (1.2-V to 5.5-V); (3)High PSRR (49 dB at 10 kHz); (4)Ultralow Noise (48 μVRMS, TPS79630); (5)Fast Start-Up Time (50 μs); (6)Stable With a 1-μF Ceramic Capacitor; (7)Excellent Load/Line Transient Response; (8)Very Low Dropout Voltage (390 mV at Full Load, TPS78630); (9)6-Pin SOT223-6 and 5-Pin DDPAK Package.

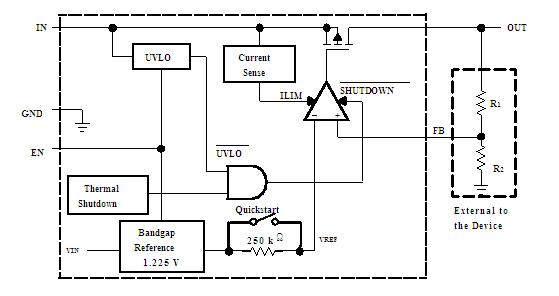

Diagrams
