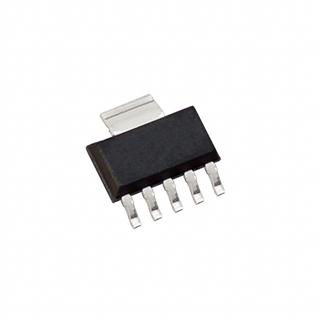

Product Summary
The TPS72625DCQR is a 1-A low-dropout (LDO) linear regulator has fixed voltage options available that arecommonly used to power the latest DSPs, FPGAs, and microcontrollers. The integrated supervisory and Adjustable (1.22-V to 5.5-V) circuitry provides an active low RESET signal when the output falls out of regulation. The no capacitor/any capacitor feature allows the customer to tailorLoad, and Temperature (-40℃ to 125℃) output transient performance as needed. The applications of the TPS72625DCQR include PCI Cards, Modem Banks and Telecom Boards, DSP, FPGA, and Microprocessor Power Supplies, Portable, Battery-Powered Applications, 1.26-V Core Voltage for the Following DSPs.
Parametrics
TPS72625DCQR absolute maximum ratings: (1)Input voltage, VI: -0.3 to 7 V; (2)Voltage range at EN, FB: -0.3 to VI+ 0.3 V; (3)Voltage on OUT, RESET: 6 V; (4)ESD rating, HBM: 2 kV; (5)Continuous total power dissipation: See Dissipation Ratings Tabl; (6)Operating junction temperature range, Tj: -50 to 150℃; (7)Maximum junction temperature range, Tj: 150℃; (8)Storage temperature, Tstg: -65 to 150℃.
Features
TPS72625DCQR features: (1)1-A Low-Dropout Regulator Supports Input Voltages Down to 1.8-V; (2)Available in 1.26-V, 1.5-V, 1.6-V, 1.8-V, 2.5-V, and Adjustable (1.22-V to 5.5-V); (3)Stable With Any Type/Value Output Capacitor; (4)±2% Output Voltage Tolerance Over Line, Load, and Temperature (-40℃ to 125℃); (5)Integrated Supervisor (SVS) With 200-ms RESET Delay Time; (6)Low 170-mV Dropout Voltage at 1 A; (7)Low 210-μA Ground Current at Full Load; (8)Less than 1-μA Standby Current; (9)Integrated UVLO with Thermal and Overcurrent Protection; (10)5-Lead SOT223-5 or DDPAK Surface-Mount Package.

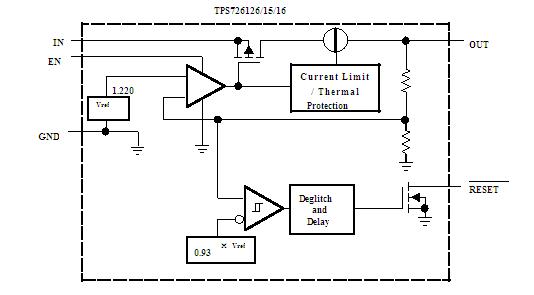

Diagrams
