Product Summary

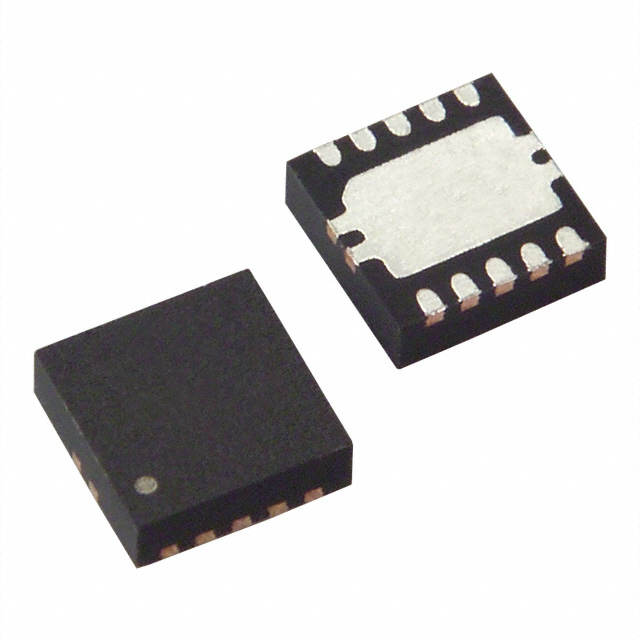

The TPS63000DRCR is a high efficient single inductor buck-boost converter with 1.8A switches. It provides a power supply solution for products powered by either a two-cell or three-cell alkaline, NiCd or NiMH battery, or a one-cell Li-lon or Li-polymer battery. It is packaged in a 10-pin AFN powerPAD package measuring 3mm×3mm (DRC). The applications of the TPS63000DRCR include All Two-Cell and Three-Cell Alkaline, NiCd or NiMH or Single-Cell Li Battery Powered Products, Portable Audio Players, PDAs, Cellular Phones, Personal Medical Products and White LEDs.

Parametrics

TPS63000DRCR absolute maximum ratings: (1)Input voltage range on VIN, VINA, L1, L2, VOUT, PS/SYNC, EN, FB: –0.3 V to 7 V; (2)Operating virtual junction temperature range, TJ: –40℃ to 150℃; (3)Storage temperature range, Tstg: –65℃ to 150℃.

Features

TPS63000DRCR features: (1)Up to 96% Efficiency; (2)1200-mA Output Current at 3.3V in Step Down Mode (VIN = 3.6V to 5.5V); (3)Up to 800-mA Output Current at 3.3V in Boost Mode (VIN > 2.4V); (4)Automatic Transition between Step Down and Boost Mode; (5)Device Quiescent Current less than 50μA; (6)Input Voltage Range: 1.8V to 5.5V; (7)Fixed and Adjustable Output Voltage Options from 1.2V to 5.5V; (8)Power Save Mode for Improved Efficiency at Low Output Power.

Diagrams

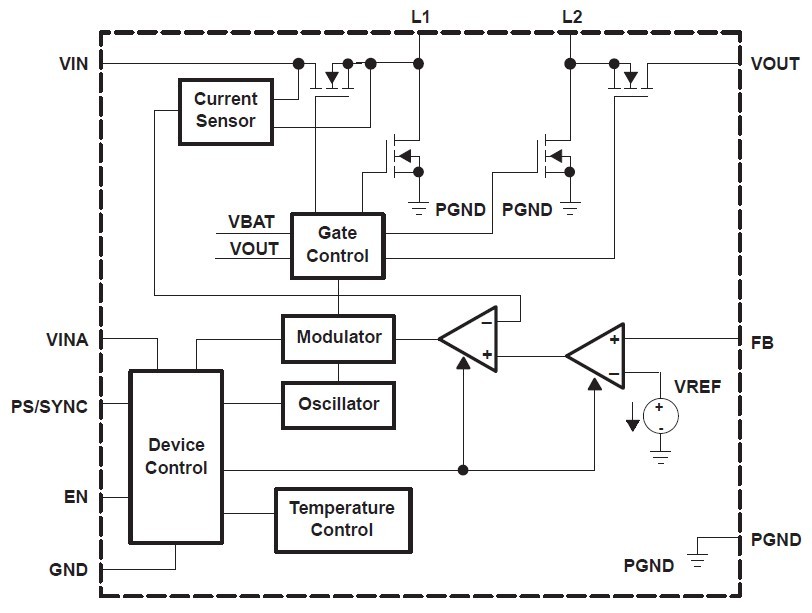

TPS63000DRCR block diagram
