Product Summary
The TPS56100PWP is a high-efficiency synchronous-buck regulator controller which provides an accurateprogrammable supply voltage to low-voltage digital signal processors, such as the’C6x and ’C54x DSPs. Aninternal 5-bit DAC is used to program the reference voltage from 1.3 V to 2.6 V. Higher output voltages can beimplemented using an external input resistive divider. The TPS56100PWP uses a fast hysteretic control method thatprovides a quick transient response. The propagation delay from the comparator input to the output driver is less than 300 ns, even at maximum output current.
Parametrics
TPS56100PWP absolute maximum ratings: (1)Supply voltage, VCC: 4.5 to 6V; (2)Input voltage, BOOT to DRVGND: 0 to 28V; (3)Input voltage, BOOT to BOOTLO: 0 to 13V; (4)Input voltage, INHIBIT, VPx, LODRV, PWRGD, OCP: 0 to 6V; (5)Input voltage, LOHIB, LOSENSE, IOUTLO, HISENSE, BIAS, DRV: 0 to 6V; (6)Input voltage, VSENSE: 0 to 4.5V; (7)Voltage difference between ANAGND and DRVGND: 0 to ±0.2V; (8)Output current, VREFB: 0 to 0.4mA.
Features

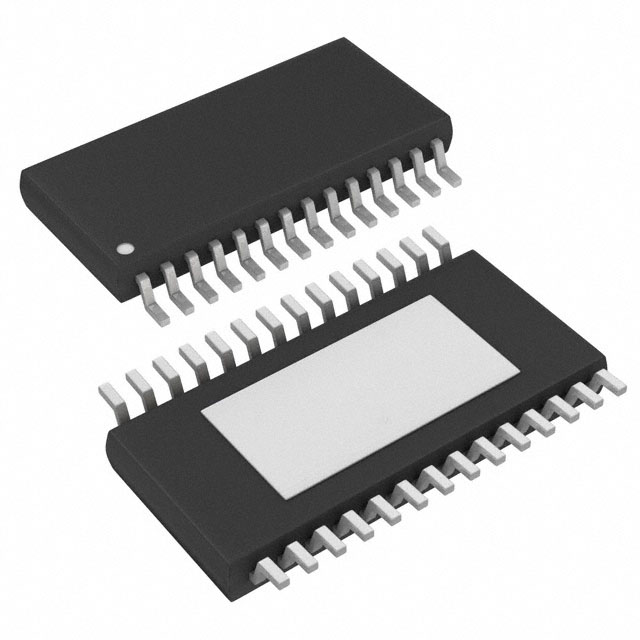

TPS56100PWP features: (1)Single-Channel, 5-V Controller; (2)Synchronous-Rectifier Drivers for Greater Than 90% Efficiency; (3)Useable for All Common DSP Supply Voltages-Popular Output Voltage OptionsSet With Program Pins; (4)EVM AvailableD Ideal for Applications With Current Ranges From 3 A to 30 A; (5)Hysteretic Control Technique Enables Fast Transient Response-Ideal for’ C6000 or Multiple’C5000 Applications; (6)Low Supply Current-3 mA in Operation-90μA in Standby; (7)Power Good OutputD 28-Pin TSSOP PowerPAD Package.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TPS56100PWP |
Texas Instruments |
DC/DC Switching Controllers 5 Bit Programmable Sync Buck Cont |
Data Sheet |
|
|
||||||||||||
|
TPS56100PWPG4 |
Texas Instruments |
DC/DC Switching Controllers 5 Bit Programmable Sync Buck Cont |
Data Sheet |
|
|
||||||||||||
|
TPS56100PWPRG4 |
Texas Instruments |
DC/DC Switching Controllers 5B Programmable Synch Buck Cntrlr |
Data Sheet |
Negotiable |
|
||||||||||||
|
TPS56100PWPR |
Texas Instruments |
DC/DC Switching Controllers 5B Programmable Synch Buck Cntrlr |
Data Sheet |
Negotiable |
|
||||||||||||
