Product Summary

The TPS54620RGYR is a full featured 17V, 6A synchronous step down converter which is optimized for small designs through high efficiency and integrating the high-side and low-side MOSFETs. Further space savings are achieved through current mode control, which reduces component count, and by selecting a high switching frequency, reducing the inductor’ s footprint. The applications of the TPS54620RGYR include High Density Distributed Power Systems, High Peformance Point of Load Regulation and Broadband, Networking and Optical Communications Infrastructure.

Parametrics

TPS54620RGYR absolute maximum ratings: (1)Input Voltage, VIN: –0.3 to 20 V; PVIN: –0.3 to 20 V; EN: –0.3 to 3 V; BOOT: – 0.3 to 27 V; VSENSE: –0.3 to 3 V; COMP: –0.3 to 3 V; PWRGD: –0.3 to 6 V; SS/TR: – 0.3 to 3 V; RT/CLK: –0.3 to 6 V; (2)Output Voltage, BOOT-PH: 0 to 7 V; PH: –1 to 20 V; PH 10ns Transient: –3 to 20 V; (3)Vdiff(GND to PowerPAD): –0.2 to 0.2 V; (4)Source Current, RT/CLK: ± 100 μ A; (5)Sink Current, COMP: ± 200 μ A; PWRGD: –0.1 to 5 mA; (6)Electrostatic Discharge (HBM) QSS 009-105 (JESD22-A114A): 2 kV; (7)Electrostatic Discharge (CDM) QSS 009-147 (JESD22-C101B.01): 500 V; (8)Operating Junction Temperature: –40 to 150℃; (9)Storage Temperature: –65 to 150℃.

Features

TPS54620RGYR features: (1)Integrated 26mΩ / 19mΩ MOSFETs; (2)Split Power Rail: 1.6V to 17V on PVIN; (3)200kHz to 1.6MHz Switching Frequency; (4)Synchronizes to External Clock; (5)0.8V ± 1% Voltage Reference Over Temperature; (6)Low 2uA Shutdown Quiscent Current; (7)Monotonic Start-Up into Prebiased Outputs; (8)– 40 to 150℃ Operating Junction Temperature Range; (9)Adjustable Slow Start/Power Sequencing.

Diagrams

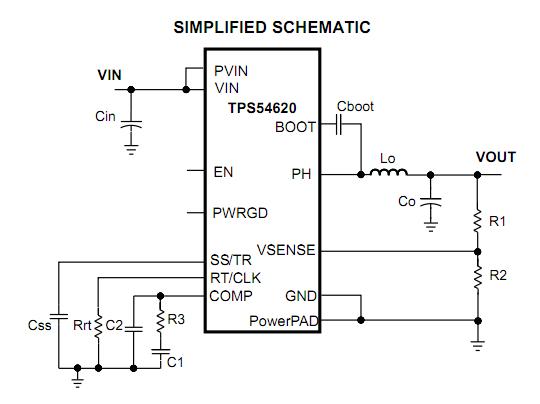

TPS54620RGYR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TPS54620RGYR
TPS54620RGYR

Texas Instruments

DC/DC Switching Regulators 4.5-17Vin 6A Synch St Down SWIFT Cnvtr

Data Sheet

0-1: $3.30
1-25: $2.47
25-100: $2.25
100-250: $1.95
