Product Summary

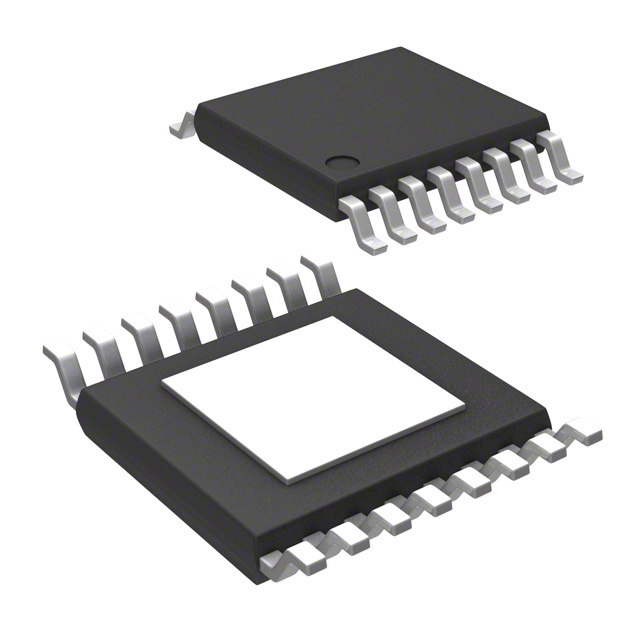

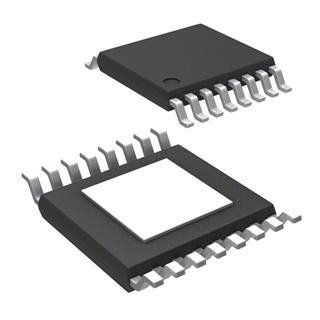

The TPS54350PWP is an adaptive on-time D-CAP2 mode synchronous buck converter. The TPS54350PWP enables system designers to complete the suite of various end equipment’s power bus regulators with a cost effective, low component count, low standby current solution. The main control loop for the TPS54350PWP uses the D-CAP2 mode control which provides a fast transient response with no external compensation components. The applications of the TPS54350PWP include Wide Range of Applications for Low Voltage System, Digital TV Power Supply, High Definition Blu-ray Disc Players, Networking Home Terminal, Digital Set Top Box (STB).

Parametrics

TPS54350PWP absolute maximum ratings: (1)VCC, Supply input voltage range: 4.5 to 18 V; (2)VIN, Power input voltage range: 2 to 18 V; (3)VI, Input voltage range, VBST: –0.1 to 24V; VBST (vs SW1, SW2): –0.1 to 5.7V; SS, PG: –0.1 to 5.7V; EN: –0.1 to 18V; VO, VFB: –0.1 to 5.5V; SW1, SW2: –1.8 to 18V; SW1, SW2 (10 ns transient): –3 to 18V; PGND1, PGND2: –0.1 to 0.1V; (4)VO, Output voltage range VREG5 –0.1 to 5.7 V; (5)TA, Operating free-air temperature –40 to 85℃; (6)TJ, Operating junction temperature –40 to 125℃.

Features

TPS54350PWP features: (1)D-CAP2 Mode Enables Fast Transient Response; (2)Low Output Ripple and Allows Ceramic Output Capacitor; (3)Wide VIN Input Voltage Range: 4.5 V to 18 V; (4)Output Voltage Range: 0.76 V to 7.0 V; (5)Highly Efficient Integrated FET’s Optimized for Lower Duty Cycle Applications, 100 mΩ (High Side) and 70 mΩ (Low Side); (6)High Efficiency, less than 10 mA at shutdown; (7)High Initial Bandgap Reference Accuracy; (8)Adjustable Soft Start; (9)Pre-Biased Soft Start; (10)700-kHz Switching Frequency (fSW); (11)Cycle By Cycle Over Current Limit.

Diagrams

TPS54327DDAR block diagram
