Product Summary
The TPS54240DGQR is a 42V, 2.5A, step down regulator with an integrated high side MOSFET. Current modecontrol provides simple external compensation and flexible component selection. A low ripple pulse skip modereduces the no load, regulated output supply current to 138mA. Using the enable pin, shutdown supply current isreduced to 1.3mA, when the enable pin is low.Under voltage lockout is internally set at 2.5V, but can be increased using the enable pin. The output voltagestartup ramp is controlled by the slow start pin that can also be configured for sequencing/tracking. The applications of the TPS54240DGQR include 12-V and 24-V Industrial and Commercial Low Power Systems, GSM, GPRS Modules in Fleet Management, -Meters, and Security Systems.
Parametrics
TPS54240DGQR absolute maximum ratings: (1)Input voltage, VIN: -0.3 to 47V; EN: -0.3 to 5V; BOOT: 55V; VSENSE: -0.3 to 3V; COMP: -0.3 to 3V; PWRGD: -0.3 to 6V; SS/TR: -0.3 to 3V; RT/CLK: -0.3 to 3.6V; (2)Output voltage, PH-BOOT: 8V; PH: -0.6 to 47 V; (3)PH, 10-ns Transient: -2 to 47V; (4)Voltage Difference, PAD to GND: ±200 mV; (5)Source current, EN: 100 μA; BOOT: 100 mA; VSENSE: 10 μA; PH: Current Limit A; RT/CLK: 100 μ A; (6)Sink current, VIN: Current Limit A; COMP: 100 μ A; PWRGD: 10 mA; SS/TR: 200 μ A; (7)Electrostatic Discharge (HBM) QSS 009-105 (JESD22-A114A): 1 kV; (8)Electrostatic Discharge (CDM) QSS 009-147 (JESD22-C101B.01): 500 V; (9)Operating junction temperature: -40 to 150℃; (10)Storage temperature: -65 to 150℃.
Features
TPS54240DGQR features: (1)3.5V to 42V Input Voltage Range; (2)0.8-V Internal Voltage Reference; (3)MSOP10 Package With PowerPAD; (4)200-mΩ High-Side MOSFET; (5)Supported by SwitcherPro Software Tool Skipping Eco-Mode; (6)For SWIFT Documentation; (7)138mA Operating Quiescent Current; (8)1.3mA Shutdown Current; (9)100kHz to 2.5MHz Switching Frequency; (10)Synchronizes to External Clock; (11)Adjustable Slow Start/Sequencing; (12)UV and OV Power Good OutputE; (13)Adjustable UVLO Voltage and Hysteresis.

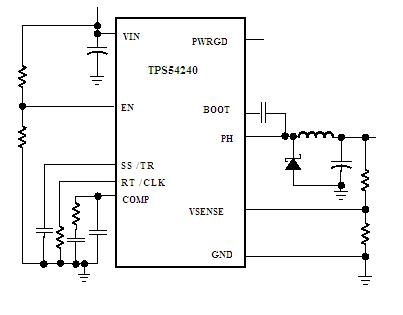

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

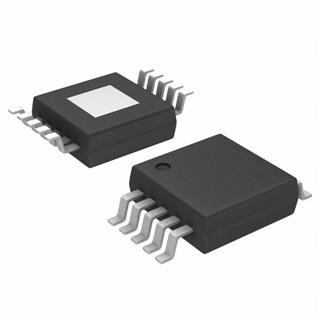

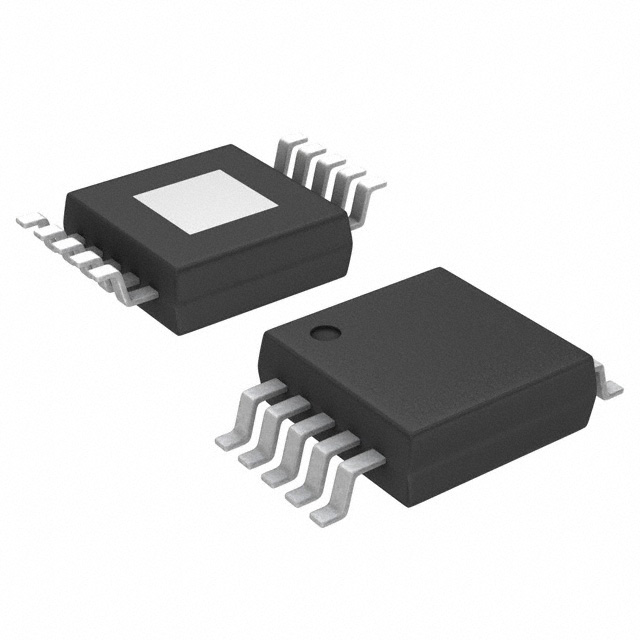

TPS54240DGQR |
Texas Instruments |
DC/DC Switching Converters 3.5-42V Inp,2.5A,2.5 MHz SWIFT Converter |
Data Sheet |
|
|
|||||||||||||
