Product Summary
The TPS5110PW is a 3-A sink/source tracking termination regulator. It is specifically designed for low-cost/low-external component count systems, where space is a premium. The TPS5110PW maintains fast transient response only requiring 20-μF (2 × 10μF) of ceramic output capacitance. The TPS5110PW supports remote sensing functions and all features required to power the DDR and DDR2 VTT bus termination according to the JEDEC specification. In addition, the TPS5110PW includes integrated sleep-state controls placing VTT in High-Z in S3 (suspend to RAM) and soft-off for VTT and VTTREF in S5 (suspend to disk). The TPS5110PW is available in the thermally efficient 10-pin MSOP PowerPAD and is specified from -40 ℃ to 85 ℃. Applications include: DDR, DDR2 Memory Termination, SSTL-2, SSTL-18 and HSTL Termination.
Parametrics
TPS5110PW absolute maximum ratings: (1)Input voltage range: VIN, VLDOIN, VTTSNS, VDDQSNS, S3, S5: -0.3 to 6 V, PGND: -0.3 to 0.3 V; (2)Output voltage range: VTT, VTTREF: -0.3 to 6 V; (3)Operating ambient temperature range, TA: -40 to 85 ℃; (4)Storage temperature, Tstg: -55 to 150 ℃.
Features
TPS5110PW features: (1)Input Voltage Range: 4.75 V to 5.25 V; (2)VLDOIN Voltage Range: 1.2 V to 3.6 V; (3)3-A Sink/Source Termination Regulator Includes Droop Compensation; (4)Requires Only 20-μF Ceramic Output Capacitance; (5)Supports High-Z in S3 and Soft-Off in S5; (6)1.2-V Input (VLDOIN) Helps Reduce Total Power Dissipation; (7)Integrated Divider Tracks VDDQSNS for VTT and VTTREF; (8)Remote Sensing (VTTSNS); (9)± 20-mV Accuracy for VTT and VTTREF; (10)10-mA Buffered Reference (VTTREF); (11)Built-In Soft-Start, UVLO and OCL; (12)Thermal Shutdown; (13)Supports JEDEC Specifications.

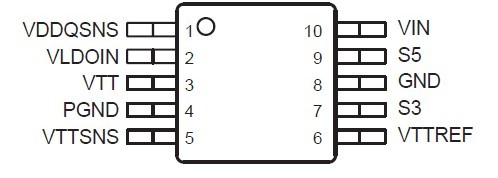

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TPS5110PWG4 |
Texas Instruments |
DC/DC Switching Controllers Sync Buck w/NMOS LDO Controller |
Data Sheet |
|
|
||||||||||||
|
TPS5110PWR |
Texas Instruments |
DC/DC Switching Controllers Sync Buck w/NMOS LDO Controller |
Data Sheet |
|
|
||||||||||||
|
TPS5110PWRG4 |
Texas Instruments |
DC/DC Switching Controllers Sync Buck w/NMOS LDO Controller |
Data Sheet |
|
|
||||||||||||
|
TPS5110PW |
Texas Instruments |
DC/DC Switching Controllers Sync Buck w/NMOS LDO Controller |
Data Sheet |
|
|
||||||||||||
