Product Summary

The TPS40090PW is a two-, three-, or four-phase programmable synchronous buck controller, optimized for low-voltage, high-current applications powered by a 5-V to 15-V distributed supply. A multi-phase converter offers several advantages over a single power stage including lower current ripple on the input and output capacitors, faster transient response toload steps, improved power handling capabilities, and higher system efficiency. The applications of the TPS40090PW include Internet Servers, Network Equipment, Telecommunications Equipment, DC Power Distributed Systems.

Parametrics

TPS40090PW absolute maximum ratings: (1)Input voltage range, VIN, EN/SYNC, VIN: 16.5V; CS1, CS2, CS3, CS4, CSCN, DROOP, FB, GNDS, ILIM,VOUT: -0.3 to 6.0V; (2)Output voltage range, VOUTREF, COMP, DIFFO, PGOOD, SS, RT, PWM1, PWM2, PWM3, PWM4, BP5: -0.3 to 6.0V; (3)Operating junction temperature range, TJ: -40 to 125℃; (4)Storage temperature, Tstg: -55 to 150℃; (5)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.

Features

TPS40090PW features: (1)Two-, Three-, or Four-Phase Operation; (2)5-V to 15-V Operating Range; (3)Programmable Switching Frequency Up to 1-MHz/Phase; (4)Current Mode Control With Forced Current Sharing; (5)1% Internal 0.7-V Reference; (6)Resistive Divider Set Output Voltage; (7)True Remote Sensing Differential Amplifier; (8)Resistive or DCR Current Sensing; (9)Current Sense Fault Protection; (10)Programmable Load Line; (11)Compatible with UCC37222 Predictive Gate Drive Technology Drivers; (12)24-Pin Space-Saving TSSOP Package; (13)TPS40090: Binary Output; TPS40091: Tri State Output.

Diagrams

TPS40090PW block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

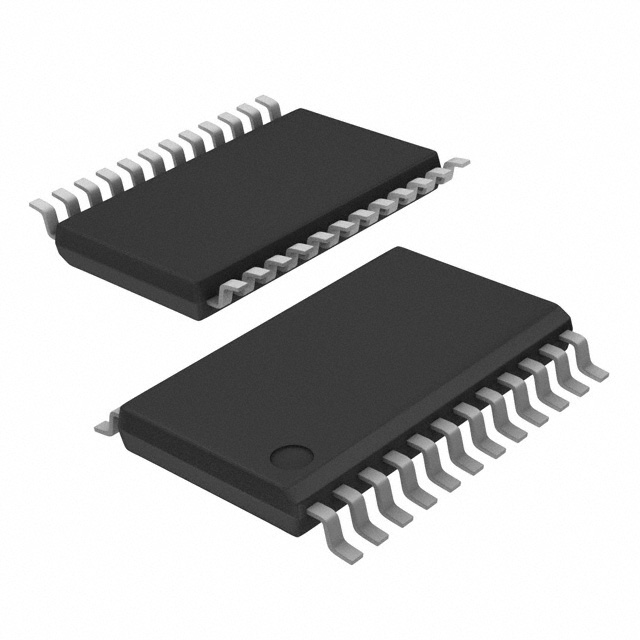

TPS40090PW
TPS40090PW
Texas Instruments
DC/DC Switching Controllers 4 Ch Multiphase Buck DC/DC Controller
Data Sheet
0-1: $3.40
1-25: $3.10
25-100: $2.48
100-250: $2.16
TPS40090PWG4
TPS40090PWG4
Texas Instruments
DC/DC Switching Controllers 4 Ch Multiphase Buck DC/DC Controller
Data Sheet
0-1: $3.45
1-25: $2.83
25-100: $2.48
100-250: $2.16
TPS40090PWRG4
TPS40090PWRG4
Texas Instruments
DC/DC Switching Controllers 4 Ch Multiphase Buck DC/DC Controller
Data Sheet
0-1560: $1.46
1560-2000: $1.43
2000-5000: $1.42
TPS40090PWR
TPS40090PWR
Texas Instruments
DC/DC Switching Controllers 4 Ch Multiphase Buck DC/DC Controller
Data Sheet
0-1560: $1.46
1560-2000: $1.43
2000-5000: $1.42
