Product Summary

The TPS2350PW is a hot swap power manager optimized for replacing OR-ing diodes in redundant power -48V systems. The TPS2350PW operates with supply voltages from -12 V to -80 V, and withstands spikes to -100 V. The TPS2350PW uses two power FETs as low voltage drop diodes to efficiently select between two redundant power supplies. This minimizes system power dissipation and also minimizes voltage drop through the power management chain. The applications of the TPS2350PW include -48V Distributed Power Systems, Central Office Switching, ONET, Base Stations.

Parametrics

TPS2350PW absolute maximum ratings: (1)Input voltage range, RTN: -0.3 to 100V; (2)Input voltage range, -VINA to -VINB: -100 to 100V; (3)Input voltage range, FLTTIM, RAMP, SENSE, OV, UV: -0.3 to 15V; (4)Output voltage range, FLT, PG: -0.3 to 100V; (5)Continuous output current, FLT, PG: 10 mA; (6)Continuous total power dissipation: TBD; (7)Operating junction temperature range, TJ: -55 to 125℃; (8)Storage temperature range, Tstg: -65 to 150℃; (9)Lead temperature soldering 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.

Features

TPS2350PW features: (1)Replaces OR-ing Diodes; (2)Operating Supply Range of -12 V to -80 V; (3)Withstands Transients to -100 V; (4)Programmable Current Limit; (5)Programmable Linear Inrush Slew Rate; (6)Programmable UV/OV Thresholds; (7)Programmable UV and OV Hysteresis; (8)Fault Timer to Eliminate Nuisance Trips; (9)Power Good and Fault Outputs; (10)14-Pin SOIC and TSSOP Package.

Diagrams

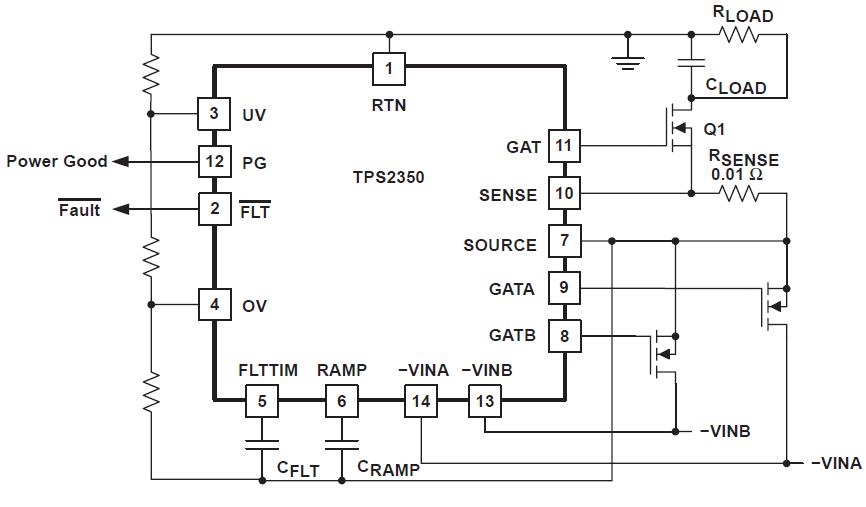

TPS2350PW block diagram
