Product Summary

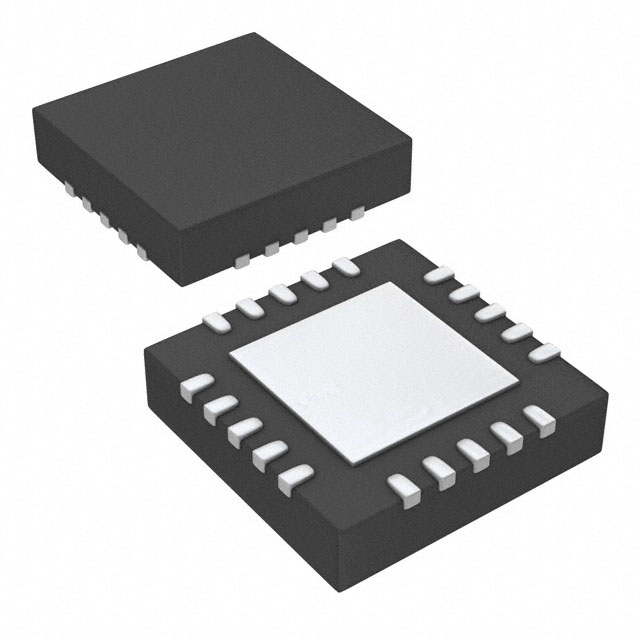

The TPS2231RGPT is an ExpressCard power interface switch. It provides the total power management solution required by the ExpressCard specification. The TPS2231RGPT ExpressCard power interface switch distributes 3.3 V, AUX, and 1.5 V to the ExpressCard socket. Each voltage rail is protected with integrated current-limiting circuitry. The applications of the TPS2231RGPT are Notebook Computers, Desktop Computers, Personal Digital Assistants (PDAs), Digital Cameras and TV and Set Top Boxes.

Parametrics

TPS2231RGPT absolute maximum ratings: (1)VI, Input voltage range for card power: -0.3 to 6 V; (2)Logic input/output voltage: – 0.3 to 6 V; (3)VO, Output voltage rang: – 0.3 to 6 V; (4)IO, Output current: 10 mA; (5)PERST sink/source current: 10 mA; (6)TJ, Operating virtual junction temperature range: – 40 to 120℃; (7)Tstg, Storage temperature range: – 55 to 150℃; (8)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.

Features

TPS2231RGPT features: (1)Meets the ExpressCard Standard (ExpressCard|34 or ExpressCard|54); (2)Compliant with the ExpressCard Compliance Checklists; (3)Fully Satisfies the ExpressCard Implementation Guidelines; (4)Supports Systems with WAKE Function; (5)TTL-Logic Compatible Inputs; (6)Short Circuit and Thermal Protection; (7)– 40 to 85℃ Ambient Operating Temperature Range; (8)Available in a 20-pin TSSOP, a 20-pin QFN, or 24-pin PowerPAD HTSSOP (Single); (9)Available in a 32-pin PowerPAD HTSSOP (Dual).

Diagrams

TPS2231RGPT block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TPS2231RGPT
TPS2231RGPT
Texas Instruments
Hot Swap & Power Distribution Single Pwr Interface
Data Sheet
0-1: $1.63
1-25: $1.34
25-100: $1.21
100-250: $1.11
TPS2231RGPTG4
TPS2231RGPTG4
Texas Instruments
Hot Swap & Power Distribution Single Pwr Interface
Data Sheet
0-1: $1.63
1-25: $1.34
25-100: $1.21
100-250: $1.11
