Product Summary

The TPS2205IDFR is a PC Card power-interface switch provides an integrated power-management solution for two PC Cards. All of the discrete power MOSFETs, a logic section, current limiting, and thermal protection for PC Card control are combined on a single integrated circuit (IC), using the Texas Instruments LinBiCMOSE process. The TPS2205IDFR allows the distribution of 3.3-V, 5-V, and/or 12-V card power, and is compatible with many PCMCIA controllers. The current-limiting feature eliminates the need for fuses, which reduces component count and improves reliability.

Parametrics

TPS2205IDFR absolute maximum ratings: (1)Input voltage range for card power: VI(5V): -0.3 V to 7 V; VI(3.3V): -0.3 V to 7 V; VI(12V): -0.3 V to 14 V; (2)Logic input voltage: -0.3 V to 7 V; (3)Continuous total power dissipation: See Dissipation Rating Table; (4)Output current (each card): IO(xVCC): Internally limited; IO(xVPP): Internally limited; (5)Operating virtual junction temperature range, TJ: -40℃ to 150℃; (6)Operating free-air temperature range, TA: -40℃ to 85℃; (7)Storage temperature range, Tstg: -55℃ to 150℃; (8)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.

Features

TPS2205IDFR features: (1)Fully Integrated VCC and Vpp Switching for Dual-Slot PC CardE Interface; (2)Compatible with Controllers From Cirrus, Ricoh, O2Micro, Intel, and Texas Instruments; (3)3.3-V Low-Voltage Mode; (4)Meets PC Card Standards; (5)12-V Supply Can Be Disabled Except During 12-V Flash Programming; (6)Short Circuit and Thermal Protection; (7)30-Pin SSOP (DB) and 32-Pin TSSOP (DAP); (8)Compatible With 3.3-V, 5-V and 12-V PC Cards; (9)Low rDS(on) (140-mW 5-V VCC Switch; 110-mW 3.3-V VCC Switch); (10)Break-Before-Make Switching.

Diagrams

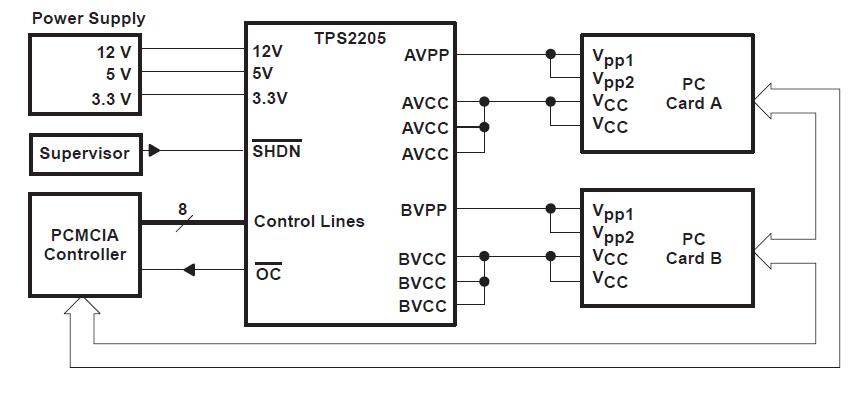

TPS2205IDFR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

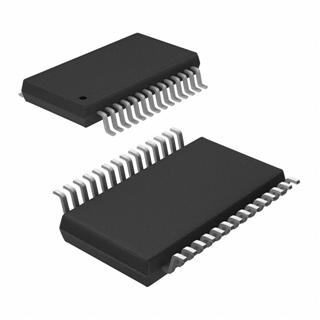

TPS2205IDFR
TPS2205IDFR

Texas Instruments

Hot Swap & Power Distribution 1A Dual-Slot PC Card Power Switch

Data Sheet

0-795: $2.20
795-1000: $2.17
1000-2000: $2.15
