Product Summary
The TPA6201A1DRBR is a 1.25-W mono fully differential amplifier designed to drive a speaker with at least 8- Ω impedance while consuming less than 37 mm 2 (ZQV package option) total printed-circuit board (PCB) area in most applications. The TPA6201A1DRBR operates from 2.5 V to 5.5 V, drawing only 1.7 mA of quiescent supply current. The TPA6201A1DRBR is available in the space-saving 2 mm × 2 mm MicroStar Junior BGA package, and the space saving 3 mm × 3 mm QFN (DRB) package. The TPA6201A1DRBR is designed for Wireless or Cellular Handsets and PDAs.
Parametrics
TPA6201A1DRBR absolute maximum ratings: (1)Supply voltage, VDD: -0.3 V to 6 V; (2)Input voltage, VI: -0.3 V to V DD + 0.3 V; (3)Operating free-air temperature, TA: -40 to 85℃; (4)Junction temperature, TJ: -40 to 125℃; (5)Storage temperature, Tstg: -65 to 85℃; (6)Lead temperature 1,6 mm (1/16 Inch) from case for 10 seconds, ZQV, DRB, DGN: 260℃; GQV: 235℃.
Features
TPA6201A1DRBR features: (1)1.25 W Into 8Ω From a 5-V Supply at THD = 1% (Typical); (2)Low Supply Current: 1.7 mA Typical; (3)Shutdown Control < 10 μ A; (4)Only Five External Components: Improved PSRR (90 dB) and Wide Supply Voltage (2.5 V to 5.5 V) for Direct Battery Operation; Fully Differential Design Reduces RF Rectification; Improved CMRR Eliminates Two Input Coupling Capacitors; C (BYPASS) Is Optional Due to Fully Differentia Design and High PSRR; (5)Avaliable in a 2 mm x 2 mm MicroStar Junior BGA Package (GQV, ZQV); (6)Available in 3 mm × 3 mm QFN Package (DRB); (7)Available in an 8-Pin PowerPAD MSOP.

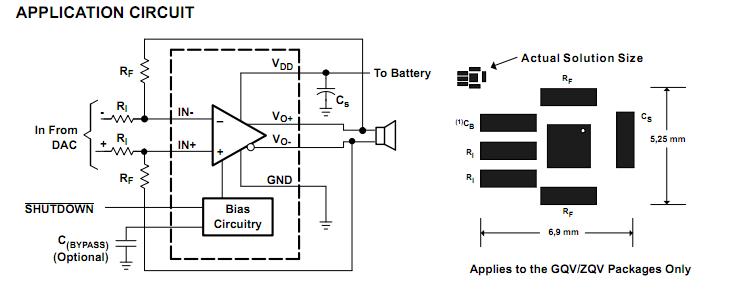

Diagrams
