Product Summary
The TPA4411YZHR is a stereo headphone driver designed to allow the removal of the output DC-blocking capacitors for reduced component count and cost. The TPA4411YZHR is ideal for small portable electronics where size and cost are critical design parameters. The TPA4411YZHR is capable of driving 80 mW into a 16-W load at 4.5 V. The device has a fixed gain of –1.5 V/V and headphone outputs that have ±8-kV IEC ESD protection. The TPA4411YZHR has independent shutdown control for the right and left audio channels. Notebook Computers, CD / MP3 Players, Smart Phones, Cellular Phones, PDAs.
Parametrics
TPA4411YZHR absolute maximum ratings: (1)Supply voltage, AVDD, PVDD: -0.3 V to 5.5 V; (2)VI Input voltage: -0.3 V to VDD + 0.3 V; (3)Output Continuous total power dissipation: See Dissipation Rating Table; (4)TA Operating free-air temperature range: -40℃ to 85℃; (5)TJ Operating junction temperature range: -40℃ to 150℃; (6)Tstg Storage temperature range: -65℃ to 85℃; (7)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.
Features
TPA4411YZHR features: (1)Space Saving Packages, 20-Pin, 4 mm × 4 mm Thin QFN; TPA4411 -Thermally Optimized PowerPAD Package; TPA4411M -Thermally Enhanced PowerPAD Package; 16-Ball, 2.18 mm × 2.18 mm WCSP; (2)Ground-Referenced Outputs Eliminate DC-Bias Voltages on Headphone Ground Pin, No Output DC-Blocking Capacitors; Reduced Board Area; Reduced Component Cost; Improved THD+N Performance; No Degradation of Low-Frequency; (3)Response Due to Output Capacitors; (4)Wide Power Supply Range: 1.8 V to 4.5 V; (5)80-mW/Ch Output Power into 16-W at 4.5 V; (6)Independent Right and Left Channel Shutdown Control; (7)Short-Circuit and Thermal Protection; (8)Pop Reduction Circuitry.

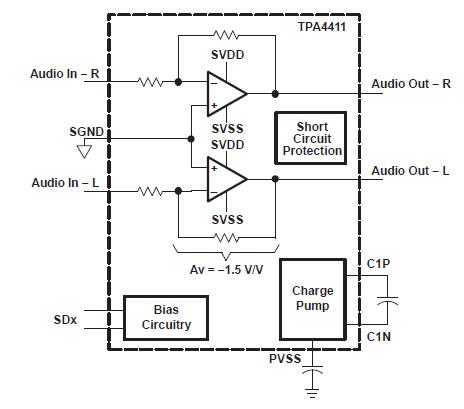

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TPA4411YZHR |
Texas Instruments |
Audio Amplifiers 80mW Cap-free Stereo Headphone Driver |
Data Sheet |
|
|
||||||||||||
