Product Summary
The TPA3100D2RGZR is a 20-W (per channel) efficient, Class-D audio power amplifier for driving bridged-tied stereo speakers. The TPA3100D2RGZR can drive stereo speakers as low as 4 W. The high efficiency of the TPA3100D2RGZR, 92%, eliminates the need for an external heat sink when playing music. The gain of the amplifier is controlled by two gain Auto Recovery Feature select pins. The gain selections are 20, 26, 32, 36dB. The outputs are fully protected against shorts to GND, VCC, and output-to-output shorts with an auto Package recovery feature and monitor output. The applications of the TPA3100D2RGZR include Televisions.
Parametrics
TPA3100D2RGZR absolute maximum ratings: (1)VCC, Supply voltage AVCC, PVCC: -0.3 V to 30 V; (2)VI, Input voltage, SHUTDOWN, MUTE: -0.3 V to VCC +0.3 V; GAIN0, GAIN1, RINN, RINP, LINN, LINP, MSTR/SLV, SYNC: -0.3 V to VREG +0.5 V; (3)Continuous total power dissipation: See Dissipation Rating Table; (4)TA, Operating free-air temperature range: -40 to 85℃; (5)TJ, Operating junction temperature range: -40 to 150℃; (6)Tstg, Storage temperature range: -65 to 150℃; (7)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃; (8)RLoad, Load Resistance: 3.2 W Minimum; (9)Electrostatic discharge, Human body model (3) (all pins): ±2 kV; Machine model (all pins): ±200 V; Charged-device model (5) (all pins): ±500 V.
Features
TPA3100D2RGZR features: (1)20-W/ch into an 8-W Load From a 18-V Supply; (2)10-W/ch into an 8-W Load From a 12-V Supply; (3)15-W/ch into an 4-W Load From a 12-V Supply; (4)Operates from 10 V to 26 V; (5)92% Efficient Class-D Operation Eliminates Need for Heat Sinks; (6)Four Selectable, Fixed Gain Settings; (7)Differential Inputs; (8)Thermal and Short-Circuit Protection With Auto Recovery Feature; (9)Clock Output for Synchronization With Multiple Class-D Devices; (10)Surface Mount 7 mm × 7 mm, 48-pin QFN Package; (11)Surface Mount 7 mm × 7 mm, 48-pin TQFP Package.

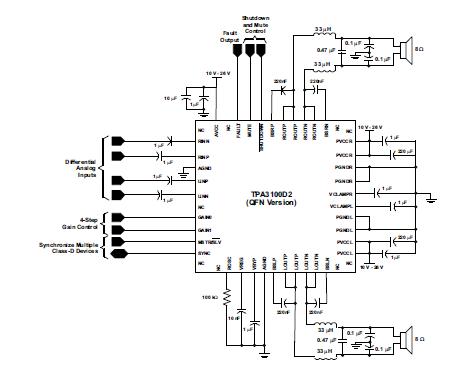

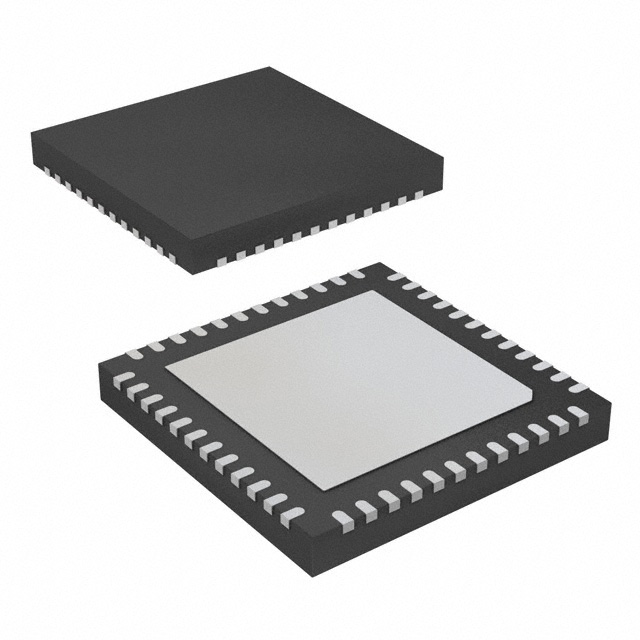

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TPA3100D2RGZR |
Texas Instruments |
Audio Amplifiers 20 W Stereo Class-D Audio Amp |
Data Sheet |
|
|
||||||||||
|
TPA3100D2RGZRG4 |
Texas Instruments |
Audio Amplifiers 20 W Stereo Class-D Audio Amp |
Data Sheet |
|
|
||||||||||
