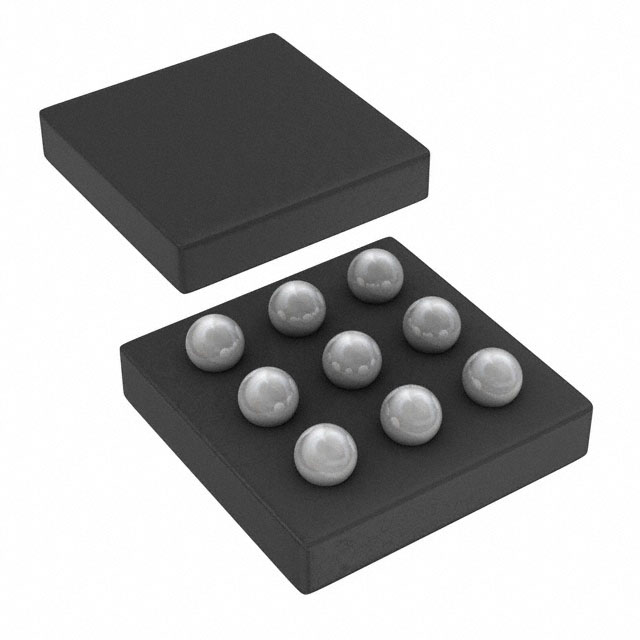

The TPA2032D1YZFR is a 2.75-W fixed gain MONO filter-free class-D audio power amplifier.
Parametrics
TPA2032D1YZFR absolute maximum ratings: (1)VDD Supply voltage In SHUTDOWN mode: –0.3 V to 7 V; (2)VDD Supply voltage In active mode: –0.3 V to 6 V; (3)VI Input voltage: –0.3 V to VDD + 0.3 V; (4)TA Operating free-air temperature: –40℃ to 85℃; (5)TJ Operating junction temperature: –40℃ to 125℃; (6)Tstg Storage temperature: –65℃ to 150℃; (7)ESD Electro-Static Discharge Tolerance - Human Body Model (HBM) for all pins: 2KV; (8)PSRR Power supply rejection ratio VDD = 2.5 V to 5.5 V: -61 dB; (9)|IIH| High-level input current VDD = 5.5 V, VI = 5.8 V: 50 μA; (10)rDS(on) Static drain-source on-state resistance VDD = 3.6 V: 420 mΩ; (11)f(sw) Switching frequency VDD = 2.5 V to 5.5 V: 240 to 400 kHz.
Features
TPA2032D1YZFR features: (1)Maximize Battery Life and Minimize Heat; (2)Three Fixed Gain Versions; (3)Only One External Component Required; (4)Thermal and Short-Circuit Protection; (5)Pinout Very Similar to TPA2010D1; (6)Wafer Chip Scale Packaging (WCSP).
