Product Summary
The TMS320C6413GTS500 is a high-performance fixed-point Digital Signal Processor. The TMS320C6413GTS500 is based on the second-generation high-performance, advanced VelociTI very-long-instruction-word (VLIW) architecture (VelociTI.2) developed by Texas Instruments (TI). The high-performance, lower-cost C6413/C6410 DSPs enable customers to reduce system costs for telecom, medical, industrial, office, and photo lab equipment. The TMS320C6413GTS500 is a code-compatible member of the C6000. DSP platform. With performance of up to 4000 million instructions per second (MIPS) at a clock rate of 500 MHz, the device offers cost-effective solutions to high-performance DSP programming challenges.
Parametrics
TMS320C6413GTS500 absolute maximum ratings: (1)Power Supply, V+: 7.0V; (2)Input Voltage: -0.5V to 7.0V; (3)Input Current: 10mA; (4)Operating Temperature Range: -55℃ to +127℃; (5)Storage Temperature Range: -60℃ to +130℃; (6)Junction Temperature (TJ Max): +150℃; (7)Lead Temperature (soldering): +300℃.
Features
TMS320C6413GTS500 features: (1)Register file enhancements; (2)Data path extensions; (3)Quad 8-bit and dual 16-bit extensions with data flow enhancements; (4)Additional functional unit hardware; (5)Increased orthogonality of the instruction set; (6)Additional instructions that reduce code size and increase register flexibility.

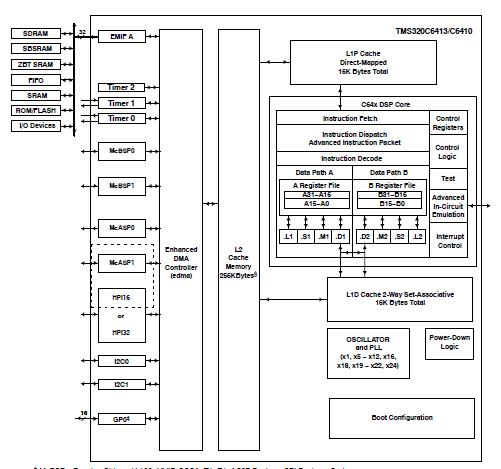

Diagrams

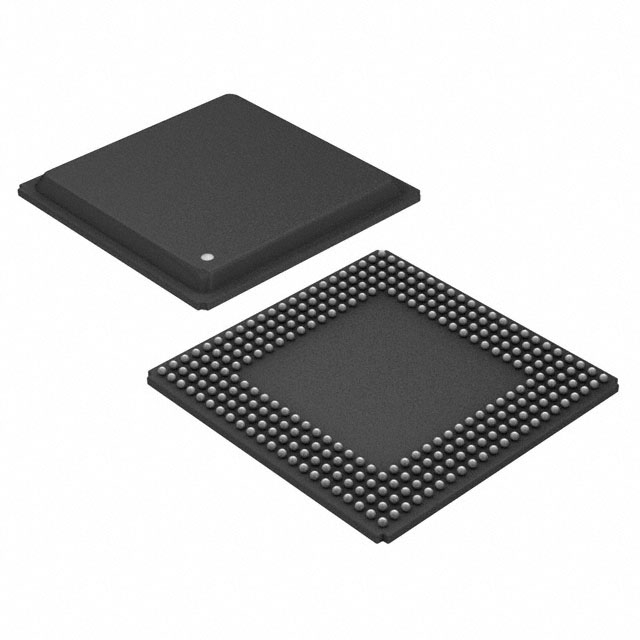

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TMS320C6413GTS500 |
Texas Instruments |
Digital Signal Processors & Controllers (DSP, DSC) Fixed-Pt Dig Sig Proc |
Data Sheet |
|
|
||||||||||
