Product Summary
The TMP125AIDBVT is a SPI-compatible temperature sensor available in the tiny SOT23-6 package. Requiring no external components, the TMP125AIDBVT is capable of measuring temperatures within 2℃ of accuracy over a temperature range of -25℃ to +85℃ and 2.5℃ of accuracy over -40℃ to +125℃. Low supply current, and a supply range from 2.7V to 5.5V, make the TMP125AIDBVT an excellent candidate for low-power applications. The applications of the TMP125AIDBVT include base station equipment, computer peripheral thermal protection, notebook computers, data acquisition systems, telecom equipment, office machines.
Parametrics
TMP125AIDBVT absolute maximum ratings: (1)Supply Voltage: +7V; (2)Input Voltage(2): -0.3V to +7V; (3)Input Current: ±10mA; (4)Output Short Circuit(3): Continuous; (5)Operating Temperature Range: -55℃ to +125℃; (6)Storage Temperature Range: -60℃ to +150℃; (7)Junction Temperature (TJ max): +150℃; (8)Lead Temperature (soldering): +300℃; (9)ESD Rating (Human Body Model): 4000V; (Charged Device Model): 1000V.
Features
TMP125AIDBVT features: (1)DIGITAL OUTPUT: SPI-Compatible Interface; (2)RESOLUTION: 10-Bit, 0.25℃; (3)ACCURACY: ±2.0℃ (max) from -25℃ to +85℃; ±2.5℃ (max) from -40℃ to +125℃; (4)LOW QUIESCENT CURRENT: 50μA (max); (5)WIDE SUPPLY RANGE: 2.7V to 5.5V; (6)TINY SOT23-6 PACKAGE; (7)OPERATION FROM -40℃ to +125℃.

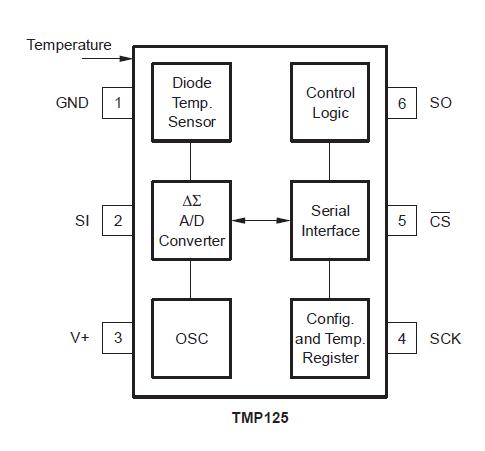

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TMP125AIDBVT |
Texas Instruments |
Board Mount Temperature Sensors 2 DegC Accurate Dig w/SPI Interface |
Data Sheet |
|
|
||||||||||||||
|
TMP125AIDBVTG4 |
Texas Instruments |
Board Mount Temperature Sensors 2 DegC Accurate Dig w/SPI Interface |
Data Sheet |
|
|
||||||||||||||
