Product Summary

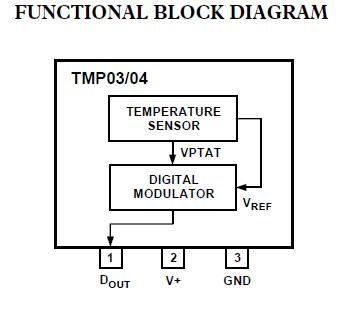

The TMP03FT9Z is a monolithic temperature detector that generates a modulated serial digital output that varies in direct proportion to the temperature of the device. An onboard sensor generates a voltage precisely proportional to absolute temperature which is compared to an internal voltage reference and input to a precision digital modulator. The ratiometric encoding format of the serial digital output is independent of the clock drift errors common to most serial modulation techniques such as voltageto-frequency converters. Overall accuracy is ±1.5℃ (typical) from -25℃ to +100℃, with excellent transducer linearity. The applications of the TMP03FT9Z include Isolated Sensors, Environmental Control Systems, Computer Thermal Monitoring, Thermal Protection, Industrial Process Control, Power System Monitors.

Parametrics

TMP03FT9Z absolute maximum ratings: (1)Maximum Supply Voltage: +9 V; (2)Maximum Output Current (TMP03 DOUT): 50 mA; (3)Maximum Output Current (TMP04 DOUT): 10 mA; (4)Maximum Open-Collector Output Voltage (TMP03): +18 V; (5)Operating Temperature Range: -55℃ to +150℃; (6)Dice Junction Temperature: +175℃; (7)Storage Temperature Range: -65℃ to +160℃; (8)Lead Temperature (Soldering, 60 sec): +300℃.

Features

TMP03FT9Z features: (1)Low Cost 3-Pin Package; (2)Modulated Serial Digital Output Proportional to Temperature; (3)±1.58C Accuracy (typ) from -25℃ to +100℃; (4)Specified -40℃ to +100℃, Operation to 150℃; (5)Power Consumption 6.5 mW Max at 5 V; (6)Flexible Open-Collector Output on TMP03; (7)CMOS/TTL Compatible Output on TMP04; (8)Low Voltage Operation (4.5 V to 7 V).
