Product Summary

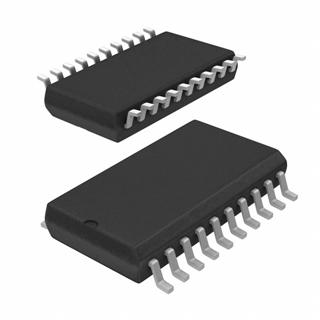

The TLV1570CDW is a 10-bit data acquisition system that combines an 8-channel input multiplexer (MUX), a high-speed 10-bit ADC, an on-chip reference, and a high-speed serial interface. The TLV1570CDW contains an on-chip control register allowing control of channel selection, conversion start, reference voltage levels, and power down via the serial port. The MUX is independently accessible, which allows the user to insert a signal conditioning circuit such as an anti-aliasing filter or an amplifier, if required, between the MUX and the ADC. Therefore one signal conditioning circuit can be used for all eight channels. The applications of the TLV1570CDW include Mass Storage and Hard Disk Drive, Automotive, Digital Servos, Process Control, General Purpose DSP, Image Sensor Processing.
Parametrics
TLV1570CDW absolute maximum ratings: (1)Supply voltage range, AGND to AVDD, DGND to DVDD: -0.3 V to 6.5 V; (2)Analog input voltage range: -0.3 V to AVDD+0.3 V; (3)Reference input voltage: AVDD+0.3 V; (4)Digital input voltage range: -0.3 V to DVDD+0.3 V; (5)Operating virtual junction temperature range, TJ: -40℃ to 150℃; (6)Operating free-air temperature range, TA: 0℃ to 70℃; (7)Storage temperature range, Tstg: -65℃ to 150℃; (8)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.
Features
TLV1570CDW features: (1)Fast Throughput Rate: 1.25 MSPS at 5 V, 625 KSPS at 3 V; (2)Wide Analog Channel Input: 0 V to AVDD; (3)Eight Analog Input Channels; (4)Channel Auto-Scan; (5)Differential Nonlinearity Error: < ±1 LSB; (6)Integral Nonlinearity Error: < ±1 LSB; (7)Signal-to-Noise and Distortion Ratio: 57 dB; (8)Single 2.7-V to 5.5-V Supply Operation; (9)Very Low Power: 40 mW at 5.5 V, 8 mW at 2.7 V; (10)Auto-Power Down: 300 mA Max; (11)Software Power Down: 10 mA Max; (12)Glueless Serial Interface to TMS320 DSPs and (Q)SPI Compatible Microcontrollers; (13)Programmable Internal Reference Voltage: 3.8-V Reference for 5-V Operation, 2.3-V Reference for 3-V Operation.

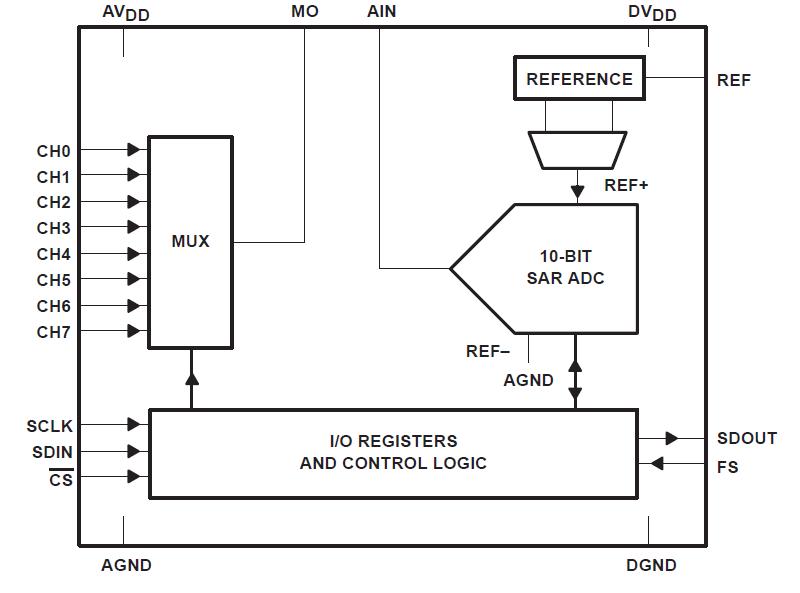

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() TLV1570CDW |
![]() Texas Instruments |
![]() ADC (A/D Converters) 10bit 1.25MSPS Ser |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() TLV1570CDWG4 |
![]() Texas Instruments |
![]() ADC (A/D Converters) 10-Bit 1.25 MSPS 8-Ch DSP |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() TLV1570CDWRG4 |
![]() Texas Instruments |
![]() ADC (A/D Converters) 10-Bit 1.25 MSPS 8-Ch DSP |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() TLV1570CDWR |
![]() Texas Instruments |
![]() ADC (A/D Converters) 10-Bit 1.25 MSPS 8-Ch DSP |
![]() Data Sheet |
![]()
|
|
