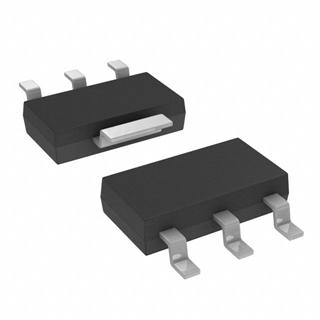

Product Summary
The TLV1117-25CDCYR is a positive low-dropout voltage regulator designed to provide up to 800 mA of output current. The TLV1117-25CDCYR is available in 1.5-V, 1.8-V, 2.5-V, 3.3-V, 5-V, and adjustable-output voltage options. All internal circuitry is designed to operate down to 1-V input-to-output differential. Dropout voltage is specified at a maximum of 1.3 V at 800 mA, decreasing at lower load currents. The low-profile surface-mount KTP package allows the device to be used in applications where space is limited. The TLV1117-25CDCYR is designed to be stable with tantalum and aluminum electrolytic output capacitors having an ESR between 0.2 W and 10 W.
Parametrics
TLV1117-25CDCYR absolute maximum ratings: (1)VI, Continuous input voltage: 16 V; (2)TJ, Operating virtual-junction temperature: 150℃; (3)Tstg, Storage temperature range: -65 to 150℃.
Features
TLV1117-25CDCYR features: (1)1.5-V, 1.8-V, 2.5-V, 3.3-V, 5-V, and Adjustable-Output Voltage Options Levels; (2)Specified Dropout Voltage at Multiple Current; (3)Output Current of 800 mA; (4)0.2% Line Regulation Maximum; (5)0.4% Load Regulation Maximum.

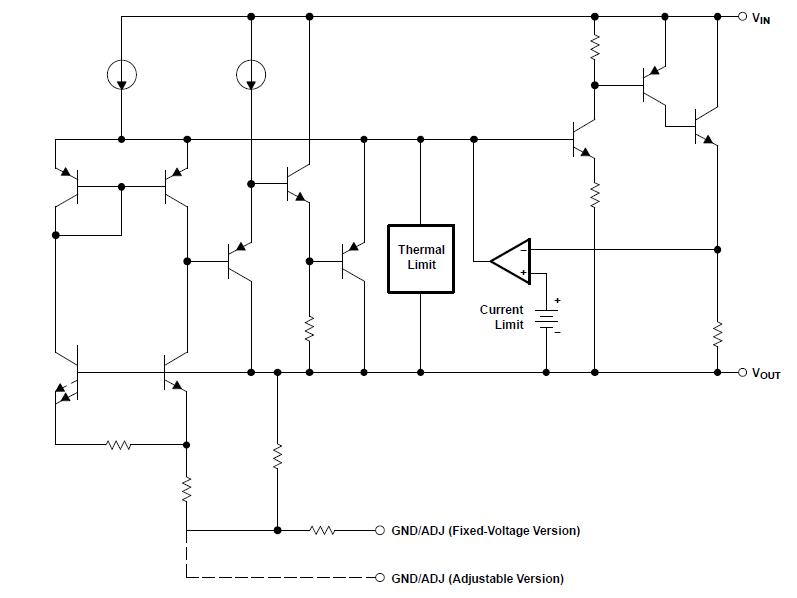

Diagrams
