Product Summary

The TLC3541ID is a high performance, 14-bit, low power, miniature CMOS analog-to-digital converter (ADC). The TLC3541ID operates from a single 5-V supply. Devices are available with single, dual, or single pseudo-differential inputs. The device has a chip select (CS), serial clock (SCLK), and serial data output (SDO) that provides a direct 3-wire interface to the serial port of most popular host microprocessors (SPI interface). When interfaced with a DSP, a frame sync signal (FS) is used to indicate the start of a serial data frame on either pin 1 (CS) or pin 7 (FS) for the TLC3541ID. The applications of the TLC3541ID include ATE System, Industrial Process Control, Measurement, Motor Control.

Parametrics

TLC3541ID absolute maximum ratings: (1)Supply voltage, GND to VDD: -0.3 V to 6.5V; (2)Analog input voltage range: -0.3 V to VDD+0.3 V; (3)Reference input voltage: VDD+0.3 V; (4)Digital input voltage range: -0.3 V to VDD+0.3 V; (5)Operating virtual junction temperature range, TJ: -40℃ to 150℃; (6)Operating free-air temperature range: TA (I suffix): -40℃ to 85℃; (7)Storage temperature range, Tstg: -65℃ to 150℃; (8)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.

Features

TLC3541ID features: (1)200-KSPS Sampling Rate; (2)Built-In Conversion Clock; (3)INL: ±1 LSB Max, DNL: ±1 LSB Max; (4)SINAD = 81.5 dB, SFDR = 95 dB THD = 94 dB at 15 kHz fin, 200KSPS; (5)SPI/DSP-Compatible Serial Interfaces With SCLK Input up to 15 MHz; (6)Single 5-V Supply; (7)Rail-to-Rail Analog Input With 500 kHz BW; (8)Two Input Options Available: TLC3541-Single Channel Input; TLC3545-Single Channel, Pseudo-Differential Input; (9)(TLC3541) Optimized DSP Interface-Requires FS Input Only; (10)Low Power With Auto-Power Down, Operating Current: 3.5 mA; Auto-Powerdown Current: 5 μA; (11)Pin Compatible 12-/14-/16-Bit Family in 8-Pin SOIC and MSOP Packages.

Diagrams

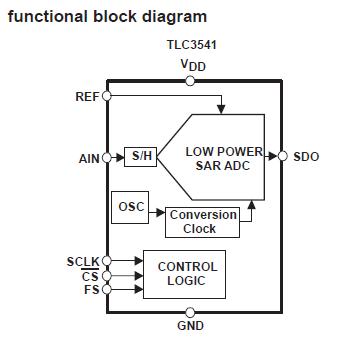

TLC3541ID block diagram
