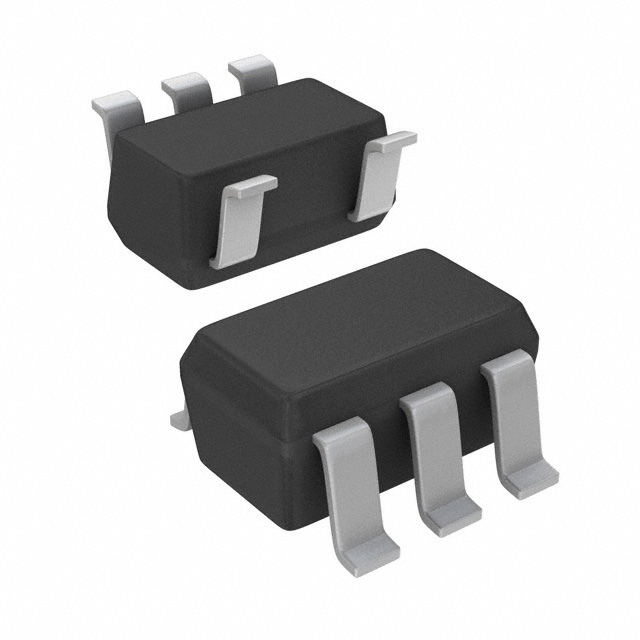

Product Summary
The TL343IDBVR is a single operational amplifier similar in performance to the μA741, but with several distinct advantages. The TL343IDBVR is designed to operate from a single supply over a range of voltages from 3 V to 30 V. Operation from split supplies also is possible, provided the difference between the two supplies is 3 V to 30 V. The common-mode input range of the TL343IDBVR includes the negative supply. Output range is from the negative supply to VCC-1.5V.
Parametrics
TL343IDBVR absolute maximum ratings: (1)Supply voltage (see Note 1) VCC+: 18V; (2)VCC-: -18V; (3)Supply voltage, VCC+ with respect to VCC-: 36V; (4)Differential input voltage (see Note 2): ±36V; (5)Input voltage (see Notes 1 and 3): ±18 V; (6)Package thermal impedance, θJA (see Notes 4 and 5): 206℃/W; (7)Operating virtual junction temperature, TJ: 150℃; (8)Storage temperature range, Tstg: -65 to 150℃.
Features
TL343IDBVR features: (1)Wide Range of Supply Voltages, Single Supply 3 V to 30 V, or Dual Supplies; (2)Class AB Output Stage; (3)True Differential-Input Stage; (4)Low Input Bias Current; (5)Internal Frequency Compensation; (6)Short-Circuit Protection.

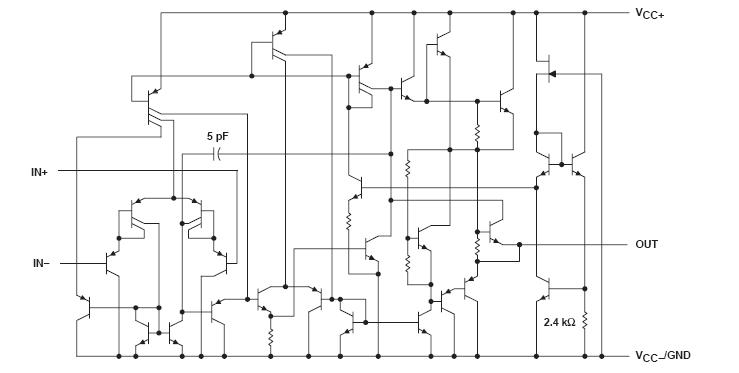

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TL343IDBVR |
Texas Instruments |
Operational Amplifiers - Op Amps Single Low Power |
Data Sheet |
|
|
||||||||||||
|
TL343IDBVRE4 |
Texas Instruments |
Operational Amplifiers - Op Amps Single Low-Power Op Amp |
Data Sheet |
|
|
||||||||||||
|
TL343IDBVRG4 |
Texas Instruments |
Operational Amplifiers - Op Amps Sgl Lo-Pwr Op Amp |
Data Sheet |
|
|
||||||||||||
