Product Summary

The THS4531IDGKR is a low-power, fully-differential op amp with input common-mode range below the negative rail and rail-to-rail output. The THS4531IDGKR is designed for low-power data acquisition systems and high density applications where power consumption and dissipation is critical. The applications of the THS4531IDGKR include Low-Power, Wide-Bandwidth Differential Driver, Low-Power, Wide-Bandwidth Differential Signal Conditioning, High Channel Count and Power Dense Systems.

Parametrics

THS4531IDGKR absolute maximum ratings: (1)Supply voltage, VS– to VS+: 5.5V; (2)Input/output voltage, VIN±, VOUT±, and VOCM pins: (VS–) – 0.7 to (VS+) + 0.7 V; (3)Differential input voltage, VID: 1 V; (4)Continuous output current, IO: 50mA; (5)Continuous input current, Ii: 0.75mA; (6)Continuous power dissipation: See Thermal Information; (7)Maximum junction temperature, TJ: 150℃; (8)Operating free-air temperature range, TA :–40 to +125℃; (9)Storage temperature range, Tstg:–65 to +150℃.

Features

THS4531IDGKR features: (1)Ultra Low Power; (2)Fully-Differential Architecture; (3)Bandwidth: 36 MHz; (4)Slew Rate: 200 V/μs; (5)THD: –120 dBc at 1 kHz (1 VRMS, RL= 2 kΩ); (6)Input Voltage Noise: 10 nV/√￣Hz (f = 1 kHz); (7)Rail-to-Rail Output (RRO); (8)Negative Rail Input (NRI); (9)Output Common-Mode Control.

Diagrams

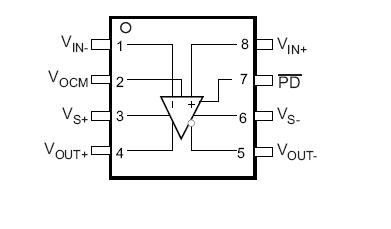

THS4531IDGKR Pin Configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

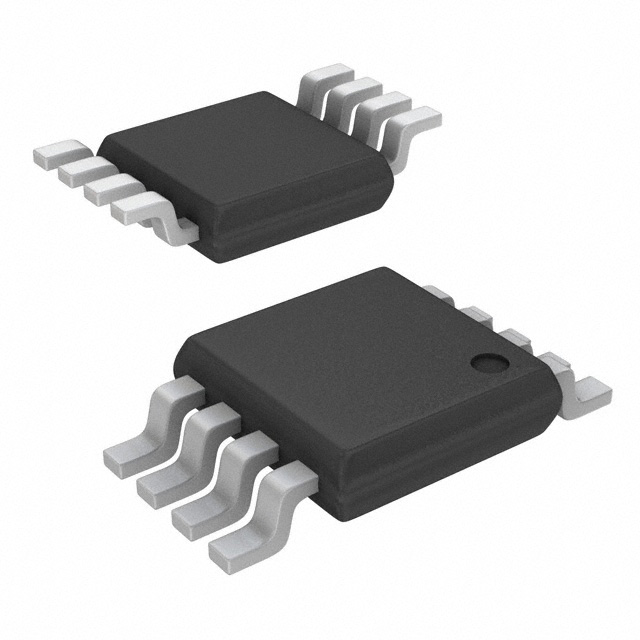

THS4531IDGKR
THS4531IDGKR
Texas Instruments
Differential Amplifiers Ultra Low Pwr 0.25mA RRO,fully diff amp
Data Sheet
0-1960: $0.85
1960-2500: $0.83
2500-5000: $0.83
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
THS4011CD
THS4011CD
Texas Instruments
High Speed Operational Amplifiers 290MHz High Speed
Data Sheet
0-1: $3.25
1-25: $2.97
25-100: $2.38
100-250: $2.06
THS4022EVM
THS4022EVM
Texas Instruments
Amplifier IC Development Tools THS4022 Hi-Spd Amp Eval Mod
Data Sheet
0-1: $33.48
THS4012IDG4
THS4012IDG4
Texas Instruments
High Speed Operational Amplifiers Dual 290MHz
Data Sheet
0-1: $4.81
1-25: $4.06
25-100: $3.73
100-250: $3.40
THS4021IDGN
THS4021IDGN
Texas Instruments
High Speed Operational Amplifiers Ultra-Low Noise Voltage-Feedback
Data Sheet
0-1: $5.27
1-25: $4.45
25-100: $4.08
100-250: $3.72
THS4021CDG4
THS4021CDG4
Texas Instruments
High Speed Operational Amplifiers 350MHz High Speed
Data Sheet
0-1: $5.14
1-25: $4.33
25-100: $3.98
100-250: $3.63
THS4021IDG4
THS4021IDG4
Texas Instruments
High Speed Operational Amplifiers Ultra-Low Noise Voltage-Feedback
Data Sheet
0-1: $5.27
1-25: $4.45
25-100: $4.08
100-250: $3.72
