Product Summary
The THS4521ID is a very low power, fully differential op amp with rail-to-rail output and an input common-mode range that includes the negative rail. The THS4521ID is designed for low-power data acquisition systems and high-density applications where power dissipations is a critical parameter. The applications of the THS4521ID include low power differnetial driver and low-power differential signal conditioning.
Parametrics
THS4521ID absolute maximum ratings: (1)Supply Voltage, VS– to VS+: 5.5 V; (2)Input Voltage, VI: ±VS V; (3)Differential Input Voltage, VID: 1 V; (4)Output Current, IO: 100 mA; (5)Continuous Power Dissipation: See Thermal Characteristic Specifications; (6)Maximum Junction Temperature, TJ: +150℃; (7)Maximum Junction Temperature, TJ (continuous operation, long-term reliability): +125℃; (8)Operating Free-air Temperature Range, TA: –40 to +85℃; (9)Storage Temperature Range, TSTG: –65 to +150℃; (10)Lead Temperature [1,6 mm (1/16 inch) from case for 10 seconds]: 300℃.
Features
THS4521ID features: (1)Fully Differential Architecture; (2)Bandwidth: 145 MHz; (3)Slew Rate: 490 V/μs; (4)Input Voltage Noise: 4.6 nV/√￣Hz (f = 100 kHz); (5)NRI—Negative Rail Input; (6)RRO—Rail-to-Rail Output; (7)Output Commor-mode control (with low offset and drift); (8)Power-Down Capability: 20μA (typ).

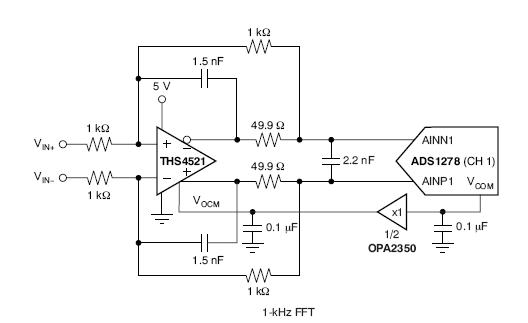

Diagrams
