The THS4503ID is a high-performance fully differential amplifier from Texas Instruments. The THS4502, featuring power-down capability, and the THS4503ID, without power-down capability, set new performance standards for fully differential amplifiers with unsurpassed linearity, supporting 14-bit operation through 40 MHz. Package options include the 8-pin SOIC and the 8-pin MSOP with PowerPAD for a smaller footprint, enhanced ac performance, and improved thermal dissipation capability. The applications of the THS4503ID include High Linearity Analog-to-Digital Converter Preamplifier, Wireless Communication Receiver Chains, Single-Ended to Differential Conversion, Differential Line Driver, Active Filtering of Differential Signals.
Parametrics
THS4503ID absolute maximum ratings: (1)Supply voltage, VS: 16.5 V; (2)Input voltage, VI: ±VS; (3)Output current, IO (2): 150 mA; (4)Differential input voltage, VID: 4 V; (5)Continuous power dissipation See Dissipation Rating Table Maximum junction temperature, TJ (3): 150℃; (6)Maximum junction temperature, continuous operation, long term reliability TJ (4): 125℃; (7)Operating free-air C suffix: 0℃ to 70℃; (8)temperature range, TA I suffix: -40℃ to 85℃; (9)Storage temperature range, Tstg: -65℃ to 150℃.
Features
THS4503ID features: (1)Fully Differential Architecture; (2)Bandwidth: 370 MHz; (3)Slew Rate: 2800 V/μs; (4)IMD3: .95 dBc at 30 MHz; (5)OIP3: 51 dBm at 30 MHz; (6)Output Common-Mode Control; (7)Wide Power Supply Voltage Range: 5 V, ±5 V, 12 V, 15 V; (8)Centered Input Common-Mode Range; (9)Power-Down Capability (THS4502); (10)Evaluation Module Available.

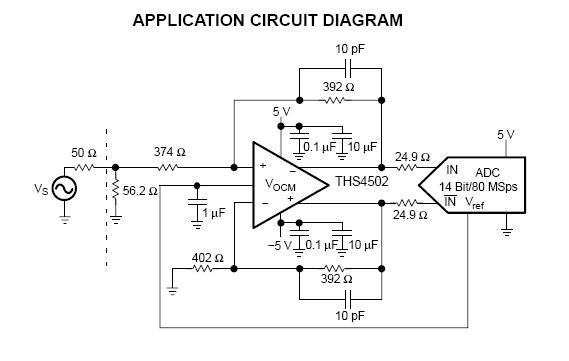

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 THS4503ID |
Texas Instruments |
Special Purpose Amplifiers Hi-Sp Fully-Diff Amp |
Data Sheet |
|
|
||||||||||||
|
THS4503IDG4 |
Texas Instruments |
Special Purpose Amplifiers Hi-Sp Fully-Diff Amp |
Data Sheet |
|
|
||||||||||||
|
THS4503IDGK |
Texas Instruments |
Special Purpose Amplifiers Hi-Sp Fully-Diff Amp |
Data Sheet |
|
|
||||||||||||
|
THS4503IDGKG4 |
Texas Instruments |
Special Purpose Amplifiers Hi-Sp Fully-Diff Amp |
Data Sheet |
|
|
||||||||||||
|
THS4503IDGKR |
Texas Instruments |
Special Purpose Amplifiers Hi-Sp Fully-Diff Amp |
Data Sheet |
Negotiable |
|
||||||||||||
|
THS4503IDGKRG4 |
Texas Instruments |
Special Purpose Amplifiers Hi-Sp Fully-Diff Amp |
Data Sheet |
Negotiable |
|
||||||||||||
|
THS4503IDGN |
Texas Instruments |
Special Purpose Amplifiers Hi-Sp Fully-Diff Amp |
Data Sheet |
|
|
||||||||||||
|
THS4503IDGNG4 |
Texas Instruments |
Special Purpose Amplifiers Hi-Sp Fully-Diff Amp |
Data Sheet |
|
|
||||||||||||
