Product Summary

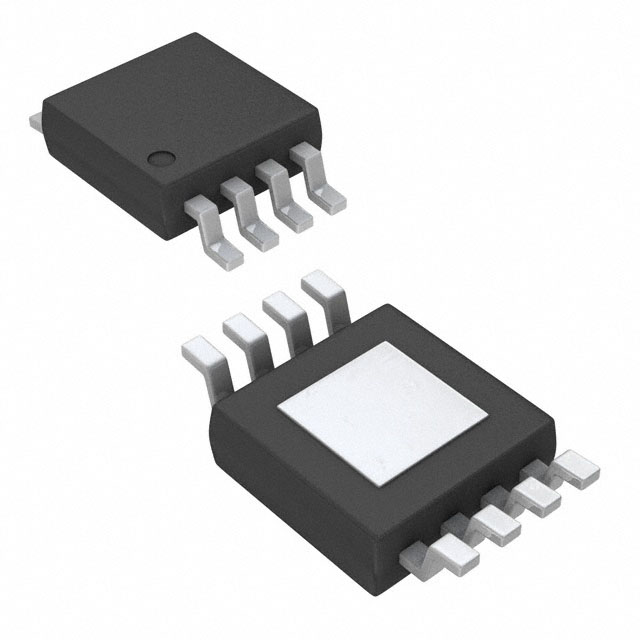

The THS4140IDGNR is a high-speed fully differential I/O amplifier. It is fabricated using Texas Instruments’ state-of-the-art BiComI complementary bipolar process. The THS4140IDGNR is made of a true fully-differential signal path from input to output. This design leads to an excellent common-mode noise rejection and improved total harmonic distortion. The applications of the THS4140IDGNR include Single-Ended To Differential Conversion, Differential ADC Driver, Differential Antialiasing, Differential Transmitter And Receiver, Output Level Shifter.
Parametrics
THS4140IDGNR absolute maximum ratings: (1)Supply voltage, VCC. to VCC+: ±16.5 V; (2)Input voltage, VI: ±VCC; (3)Output current, IO: 150mA; (4)Differential input voltage, VID: ±6 V; (5)Continuous total power dissipation: See Dissipation Rating Table; (6)Maximum junction temperature, TJ: 150℃; (7)Maximum junction temperature, continuous operation, long term reliability, TJ: 125℃; (8)Operating free-air temperature, TA:C suffix: 0℃ to 70℃; (9)I suffix: -40℃ to 85℃; (10)Storage temperature, Tstg: -65℃ to 150℃; (11)Lead temperature 1,6 mm (1/16 Inch) from case for 10 seconds: 300℃.
Features
THS4140IDGNR features: (1)High Performance; (2)160 MHz -3dB Bandwidth (VCC = ±15 V); (3)450 V/μs Slew Rate; (4)79 dB, Third Harmonic Distortion at 1 MHz; (5)6.5 nV/√￣Hz Input-Referred Noise; (6)Differential Input/Differential Output; (7)Balanced Outputs Reject Common-Mode Noise; (8)Reduced Second Harmonic Distortion Due to Differential Output; (9)Wide Power Supply Range; (10)VCC = 5 V Single Supply to ±15 V Dual Supply; (11)ICC(SD) = 880 μA in Shutdown Mode (THS4140).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 THS4140IDGNR |
Texas Instruments |
Special Purpose Amplifiers Fully Diff I/O High Slew Rate |
Data Sheet |
|
|
||||||||||
|
THS4140IDGNRG4 |
Texas Instruments |
Special Purpose Amplifiers Fully Diff I/O High Slew Rate |
Data Sheet |
|
|
||||||||||
